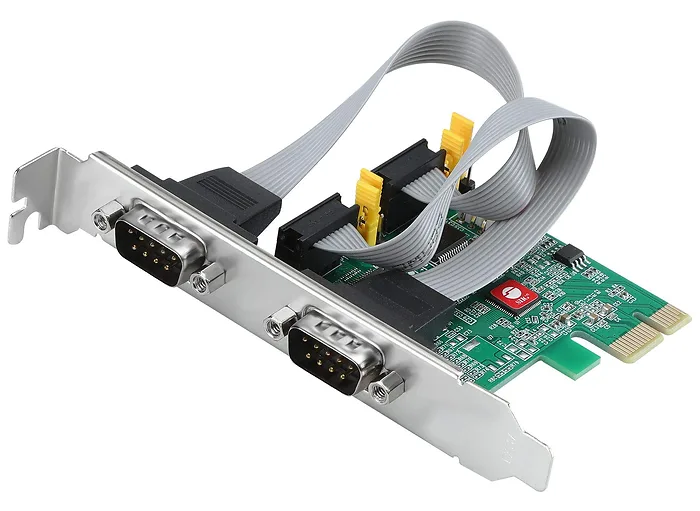

The SIIG's PCIe serial card JJ-E20711-S1 can be installed into an available PCI Express slot on the computer's motherboard, to provide two 9-pin RS-232 serial ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that do not have RS-232 or parallel ports
Adds two 9-pin RS-232 serial port to PCIe enabled desktop computers, each port supports data transfer rate up to 250Kbps, Compliant with PCI Express 2.0 Gen 1
✅ Single-lane (x1) PCI Express End-point Controller with PHY integrated; Full serial modem control with hardware and software flow control; Supports 5, 6, 7, 8 and 9-bit serial formats, and Even, Odd, None, Space and Mark parity; On chip 256-byte FIFO buffers in transmit and receive path for each serial port
✅ Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
✅ Supports PCI Bus Power Management Interface Specification Revision 1.2; Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets; Installs into any PCI Express slot of any lane width
✅ Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, et
