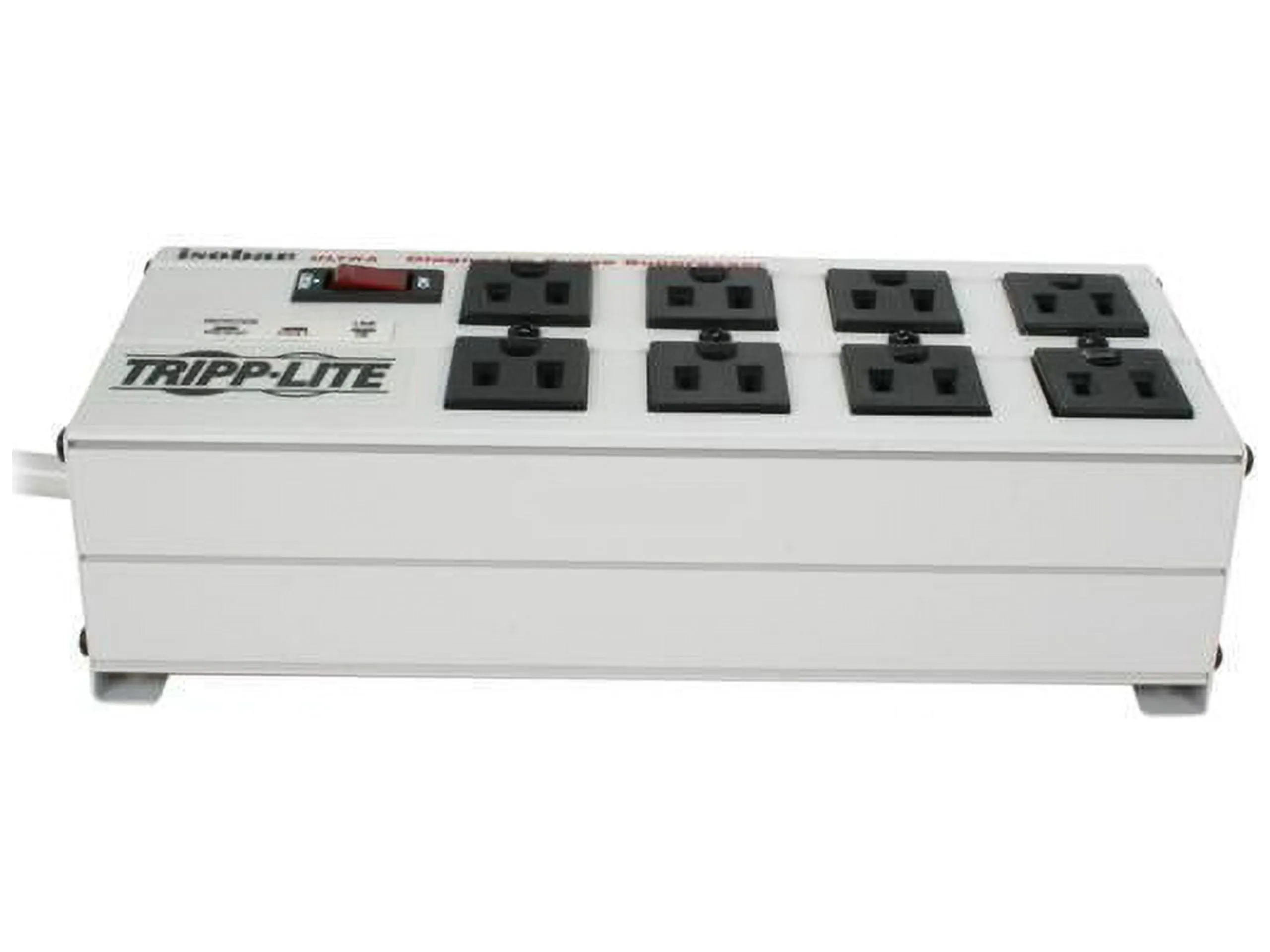

Loaded with a generous combination of high-quality components, near indestructible all-metal case and unique noise filtration system, this surge suppressor offers a high level of protection in a multi-outlet strip. Robust surge suppression circuits with sine-wave tracking offer extreme levels of protection against the heaviest surge conditions. Unique protection system combines large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive, isolated filter banks that remove EMI/RFI interference. Surge suppression rated at 3840 joules/97,000 amps offers network-grade protection. Widely spaced NEMA 5-15 outlets accommodate up to four large transformer plugs without blocking outlets. Diagnostic LEDs confirm power availability, line fault and protection status. Surge suppressor includes 25' AC line cord with space-saving angled input plug, keyhole mounting tabs and a set of four child-safety covers.Tripp Lite Isobar 8-outlet Surge Suppressor Frequency Compatibility 50 / 60 Hz
Output Receptacles (8) 5-15R
Output (Watts) 1440
Circuit Breaker (amps) 12
Transformer Accommodation Supports up to 4 large transformer plug accessories without covering remaining outlets
USB Charging No
Nominal Input Voltage(s) Supported 120V AC
Recommended Electrical Service 120V (110-125V)
Input Connection Type NEMA 5-15P input plug
Input Plug Features Space-saving right angle input plug
Input Cord Length (m) 7.62
Voltage Compatibility (VAC) 120
Maximum Surge Amps 150000
Switches Combination AC circuit breaker and two position red illuminated on/off power switch
Diagnostic LED Details PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)
AC Suppression Joule Rating 3840
AC Suppression Response Time NM 0 ns. CM <1 ns
Protection Modes Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
Clamping Voltage (RMS) 140
AC Suppression Surge Current Rating 97,000 amps (36,000 NM / 61,000 CM)
AC Suppression Components Used Metal oxide varistors, toroidal balanced chokes, ferrite rod-core inductors and VHF capacitors.
Safe Thermal Fusing Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
UL1449 Let Through Rating 330V
IEEE587 Cat. A Ringwave Let-Through Less than 35 volts
EMI / RFI Filtering 40-80 dB
Isolated Filter Banks Unique isolated filter bank design offers additional filtering between each duplex pair of outlets on the strip to prevent electrical noise interference between connected loads. Includes 4 filter banks.
Immunity Conforms to IEE 587 / ANSI C62.41
Item Dimension (L"xW"xH") 9 x 3.5 x 2.5
weight 3.30 lb
Warranty Infotmation Lifetime
