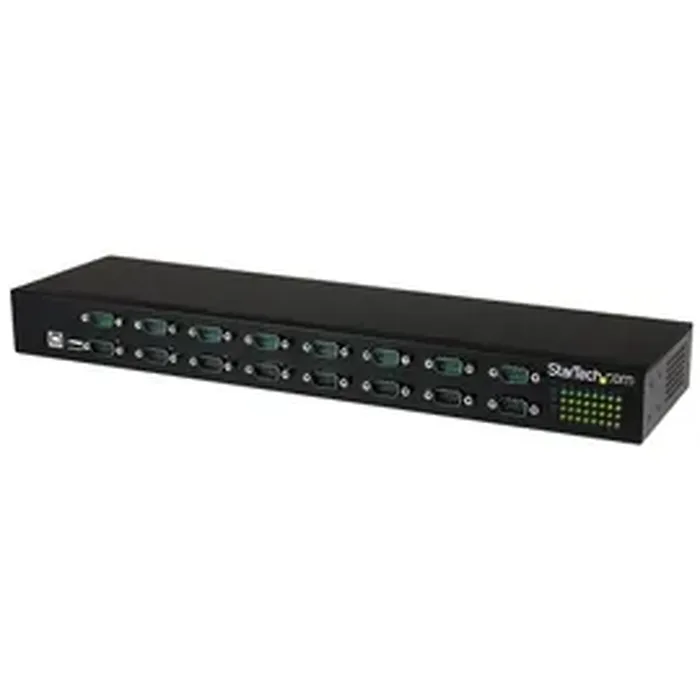

Here?s an easy and cost-efficient way to add RS232 serial capability to your industrial setting. This 16-port USB-to-serial adapter hub features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.This rack-mountable USB serial hub (FTDI) lets you add 16 serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a higher cost serial hub. Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including: industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems. The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer. The hub features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems.
Hardware
Bus Type: USB 2.0
Chipset ID: FTDI-FT232RL
Interface: Serial
Port Style: External Hub
Ports: 16 Performance
Data Bits: 7, 8
FIFO: 256 Bytes
Max Baud Rate: 921.6 Kbps
Maximum Data Transfer Rate: 480 Mbps
Parity: Odd, Even, Space, None
Serial Protocol: RS-232
Stop Bits: 1, 2 Connector Type
1 x USB B (4-Pin) Female
16 x DB-9 (9-Pin D-Sub) Male Indicators
LED Indicators:
- 16 x Data Receive
- 16 x Data Transmit Power
Center Tip Polarity: Positive
Input Current: 1.5A
Input Voltage: 100 to 240 AC
Output Current: 3A
Output Voltage: 12 DC
Plug Type: N
Power Consumption: 36W Max
Power Source: AC Adapter Included Environmental
Humidity: 20% to 80% RH (Non-Condensing)
Operating Temperature: -40 C to 85 C (-40 F to 185 F)
Storage Temperature: -65 C to 150 C (-85 F to 302 F) Physical Characteristics
Color: Black
Enclosure Type: Steel Package Contents
1 x 16-Port USB to RS232 Hub
1 x USB Cable
2 x Rack Mounting Brackets
8 x Rack Mounting Screws
2 x DIN Rail Mounting Brackets
4 x DIN Rail Mounting Screws
4 x Washers
4 x Nuts
1 x Universal Power Adapter (NA/EU/UK/AU)
1 x Driver CD
1 x Quick Start Guide Item Dimension (L"xW"xH")
18 x 9 x 3

Weight
5.51 lb

Warranty Information
2 Years
