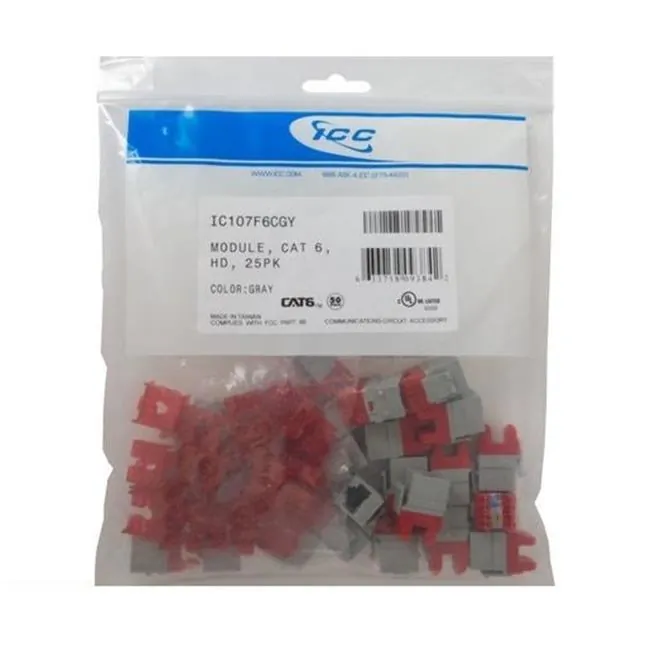

The ICC CAT 6-HD Category 6 high density modular connector has been introduced to satisfy needs for jacks where small overall size of the module is essential. The ICC CAT 6-HD delivers the same supererior performance of the ICC CAT 6-EZ modular jack and features a smaller footprint. The CAT 6-HD modular jack is avaulable in 11 colors fits all ICC faceplates inserts and bezels. The CAT 6-HD modular jack exceeds CAT 6 Channel and permanent link requirements specified in TIS/EIA 568-B.2-1 when used with many CAT 6 horizontal cables. Key Features Include Exceeds CAT 6 channel and permanent link requirements 110 IDC termination with sequential pair isolation small footprint for use in high connector density applications TIA/EIA wiring diagram for 568A and 568B on connector body Gold plated contacts for superior and performance and reliability Dual retaining caps Backward compatibility with the ICC CAT 5e modular connectors and products
- Orange IC1078F6OR ICC HD Cat 6 Keystone Jack
- CAT 6 rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
- PCB technology provides maximum performance and superior signal quality
- Reduced rear footprint allows for greater connectivity density and provides for more port configurations in a smaller area
- Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals
- Exceeds ANSI/TIA/EIA-568-B.2-1 Category 6 connecting hardware requirements
- Designed with in-line 110 IDC, in-sequence termination reducing termination time
- One piece termination cap allows for a quick and easy termination
- Includes an integrated TIA-568A/B color wiring diagram
- Backwards compatible to all lower rated category components
- Available in almond, black, blue, gray, green, ivory, orange, purple, red, white, and yellow
- Installation instructions included
- UL listed
