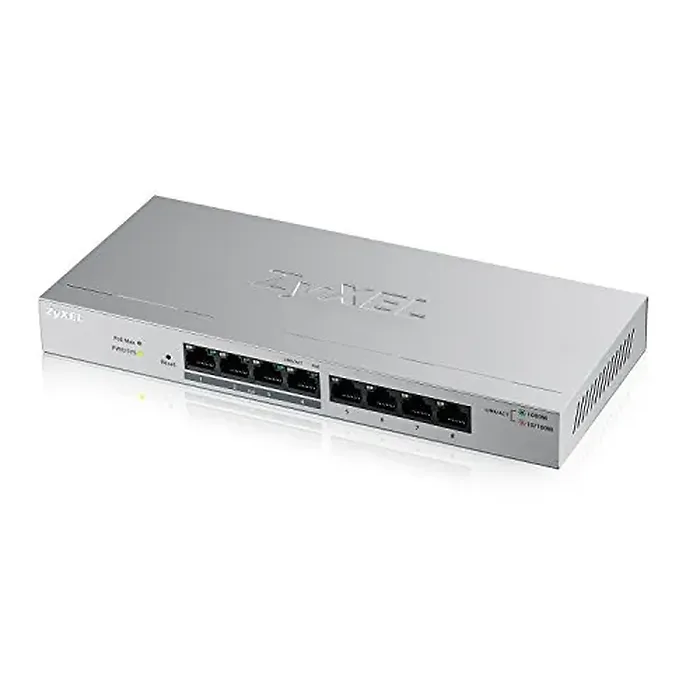

The GS1200 series of PoE+ switches features true web management, QoS and support for 802.3af and 802.3at PoE+ plus a user-friendly set-up wizard. With essential power and value features built-in, it’s the right choice for small or remote offices deploying IP cameras, VoIP phone systems or wireless access points.
Port Density
Total port count: 8
1000BASE-T: 4
1000BASE-T PoE: 4 Performance
Switching capacity: 16 Gbps
Packet buffer: 192 KB
MAC address: 4K
Jumbo frame: 9 KB LED
Power: Yes
Per port: Yes
PoE power status: Yes (Max) Power
Input voltage: 55 V/1.3 A
Power supply: External
Maximum power consumption (watt): 72
PoE power budget (watt): 60 Environmental Specifications
Operating Temperature: 0^oC to 40^oC/32^oF to 104^oF
Operating Humidity: 10% to 90% (non-condensing)
Storage Temperature: -40^oC to 70^oC/-40^oF to 158^oF
Storage Humidity: 10% to 90% (non-condensing) Standard Compliance
IEEE 802.3u 100BASE-TX Ethernet
IEEE 802.3ab 1000BASE-T Ethernet
IEEE 802.3az EEE support
IEEE 802.3x flow control
IEEE 802.3z 1000BASE-X
IEEE 802.1p CoS
IEEE 802.3af PoE
IEEE 802.3at PoE Plus (30 W per port)
Auto MDI/MDI-X
IEEE 802.1Q VLAN tagging Features
Web-based management
System password
Port-based VLAN
VLAN (Port supported)
GS1200-8HP: 8 ports
Port-based QoS
802.1p CoS
Broadcast storm control
Loop detection
GS1200-8HP: Yes
Weighted Round Robin (WRR) priority QoS
IGMP snooping v1/v2/and v3 compatible
Supported multicast groups: 20
Firmware update Certification
EMC: CE, FCC, C-Tick, Class A
Safety: LVD EN60950-1
RoHS compliant Item Dimension (L"xW"xH")
10 x 6 x 4

Weight
2.73 lb

Warranty Information
Limited Lifetime
