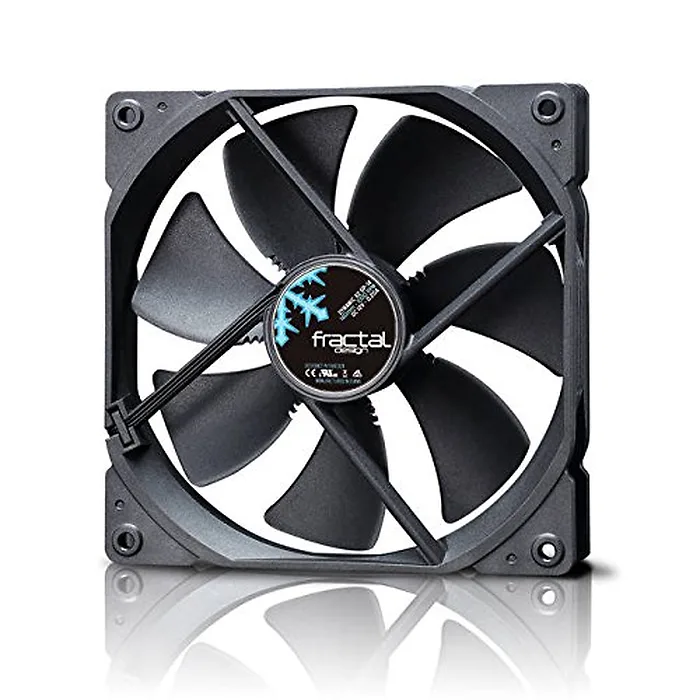

Dynamic X2 GP-14 is a true all-purpose fan, offering good airflow and best in class 100,000 hours MTBF thanks to the new LLS bearing. Their customized design creates a beautifully aesthetic fan to help keep your system cool, yet quiet.
Size (mm)
140x140x25mm Colors available
White blades, black frame
Black blades, black frame
White blades, white frame
Screw hole pattern
125x125mm Connector
3-pin fan header Bearing
LLS Number of blades
7 Rotational speed (RPM)
1000 Acoustical noise (dB (A))
18.9 Maximum air flow (CFM)
68.4 Maximum pressure (mm H2O)
0.71 Actual input power (W)
1.32 Maximum rated input current (A)
0.20 Nominal input voltage (V)
12 Minimum startup voltage (V)
4 MTBF (hours)
100,000 Cable length (mm)
500 Cable type
Black ribbon cable (BK, WT) White ribbon cable (WTO) Package contents
Dynamic X2 Series fan
Screw pack with 4 metal fan screws
Item Dimension (L"xW"xH")
2 x 8 x 6
Weight
1.00 LB
Warranty Information
2 years
