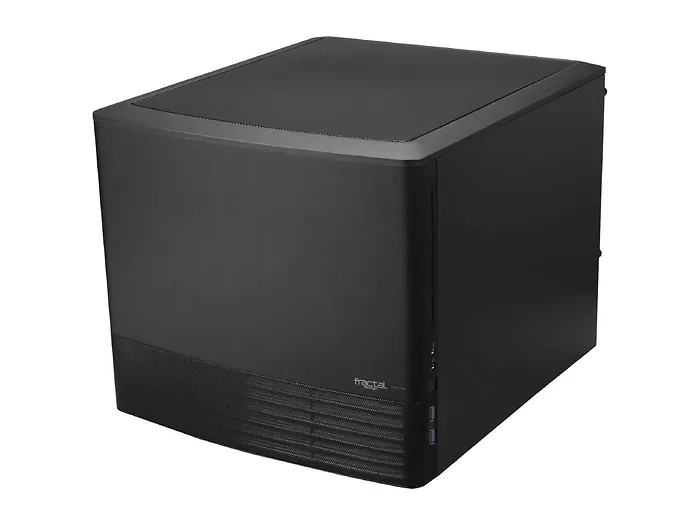

The Node 804 is a micro ATX chassis which focuses on cooling performance and maximum configurability, all packed in an interesting and elegant new form factor. The dual chamber layout separates hot running components from cooler ones while supporting multiple storage drives or even enthusiast-class liquid cooling setups.

Specifications
3,5" HDD positions
8
2,5" SSD positions
2
Extra positions for either 3,5 or 2,5 drives
2
Expansion slots
5
Front ports
2x USB 3.0, Audio in/out, Power button with LED (blue), HDD activity LED (white)
Total fan mounts
10
Front fan
4x 120 mm
Top fan
4x 120/140 mm
Rear fan 1
1x 120/140 mm (included is 1 hydraulic bearing 120 mm Silent Series R2 fan at 1000 RPM)
Rear fan 2
1x 120 mm (included is 1 hydraulic bearing 120 mm Silent Series R2 fan at 1000 RPM)
Dust filters
Front fans, Top fans, Bottom
Fixed velcro straps
Yes
Left side panel
Clear window
Right side panel
Steel Compatibility
Power supply type
ATX
Motherboard compatibility
Micro ATX, Mini ITX
Front radiator (left chamber)
240 mm (up to 60 mm thick (with fans) and 278 mm tall using a radiator in this position prevents the use of a fan in the top position just next to it)
Front radiator (right chamber)
240 mm (up to 60 mm thick (with fans) and 278 mm tall)
Top radiator (left chamber)
240 mm (up to 130 mm thick (with fans) radiators in this position limits the height of memory modules to 48 mm tall)
Top radiator (right chamber)
240/280 mm (up to 130 mm thick (with fans) may be fitted if the HDD drive bays are taken out or placed elsewhere)
PSU max length
260 mm
GPU max length
320 mm, 290 mm (if a fan is installed in the lower position in the front)
CPU cooler max height
160 mm Other
Package content
Node 804 computer case, accessory box and user manual
Additional information
Available for System Integrators Item Dimension (L"xW"xH")
17 x 15 x 19

Weight
35 lbs

Warranty Information
2 years
