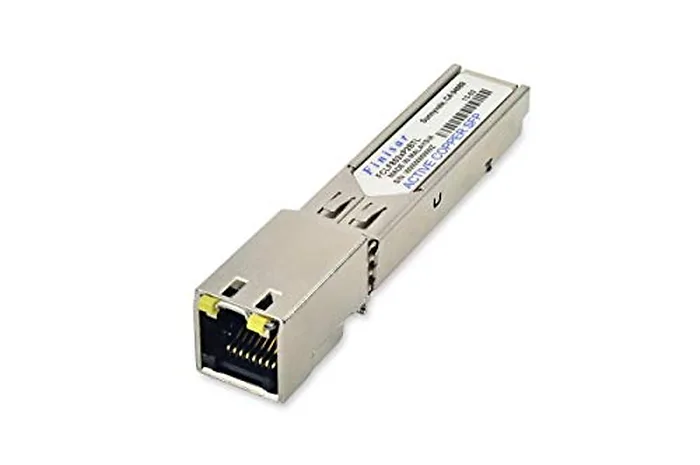

General InformationFinisar's FCLF8520P2BTL, FCLF8521P2BTL and FCLF8522P2BTL 1000BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.3. They are RoHS compliant and lead-free per Directive 2002/95/EC and Finisar Application Note AN-2038. The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.Technical InformationApplication/Usage: Data NetworkingInterfaces/PortsInterfaces/Ports Details: 1 x RJ-45 1000Base-T Network LANMedia & PerformanceMedia Type Supported: Twisted PairEthernet Technology: Gigabit EthernetNetwork Technology: 1000Base-TMaximum Data Transfer Rate: 1.25Physical CharacteristicsForm Factor: Hot-pluggableMiscellaneousCompatibility: Multi Source Agreement CompliantEnvironmentally Friendly: YesEnvironmental Certification: RoHS-6

Distance
100 m Data Rate (Max)
1.25 Gb/s Protocol
1000 Base-T Compliant Low End Case Temperature
-40 C High End Case Temperature
85 C Diagnostics
NA Transmitter
NA Receiver
NA Voltage Supply
3.3 Connector
RJ-45 Item Dimension (L"xW"xH")
3 x 1 x 1

Weight
1.00 lb

Warranty Information
1 Year
