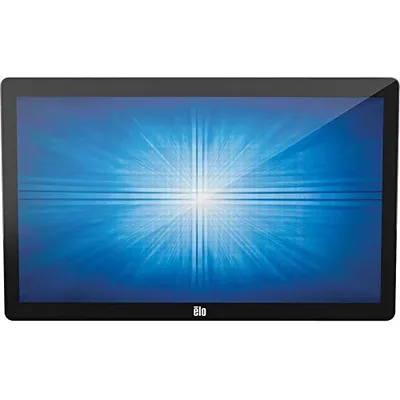

CONTROLLER, CLEAR, ZERO-BEZEL, VGA AND HDMI VIDEO INTERFACE, BLACK, WORLDWIDE.
Enclosure Color
Black
Touch Technology and Capacity
PCAP (TouchPro Projected Capacitive) - 10 Touch
Diagonal Size
23.8 diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area (mm)
20.75" x 11.67" / 527.04 mm x 296.46 mm
Resolution
1920 x 1080 at 50, 60Hz
Other Supported Resolutions
640 x 480 60Hz
640 x 400 70Hz
720 x 400 70Hz
800 x 500 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 720 at 58Hz, 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50 60Hz
Viewing Angle
Horizontal: +/-89^o or 178^o total / Vertical: +/-89^o or 178^o total
Number of Colors
16.7 million
Brightness (typical)
LCD Panel: 250 nits
TouchPro PCAP: 225 nits
Response Time-total (typical)
15 msec
Contrast Ratio
1000:1
Touch Interface
USB
Surface Treatment
Clear
On Screen Display
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean
Lockouts: OSD, Power
I/O Ports
VGA
HDMI
Combo Jack
DC jack
USB Type B
USB 2.0 Type A
4x Micro USB
Speakers
Two x 2W internal speakers
Input Video Format
VGA (VGA DE-15 (DB-15) Male connecter cable included)
HDMI (HDMI cable included)
Input Video Frequency
Horizontal: 30 - 82KHz
Vertical: 50 - 75Hz
Power Consumption (Typical)
Monitor + AC/DC adapter
ON: 25.5W
SLEEP: 0.33W
OFF: 0.27W
