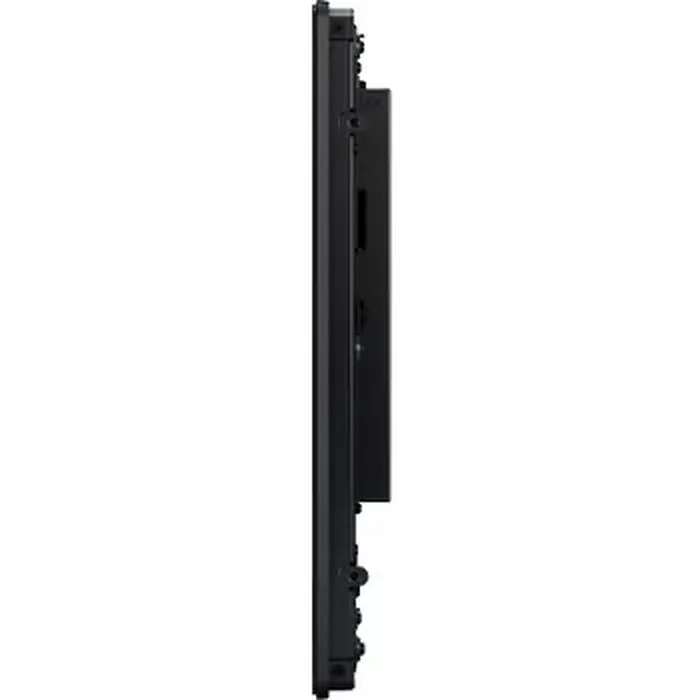

General InformationThe Elo 2294L 21.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2294L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.Easily integrated.The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.Touch ready.Available with a choice of industry-leading touch technologies, in single-, dual- or multi-touch technology, including IntelliTouch single- and dual-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.Commercial-grade.The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.Other features. High definition LCD display offers ultimate HD interactivity, clarity and resolution 10-touch TouchPro projected capacitive with two-touch Thru-glass capabilities that passes UL-60950 & IK-07 Impact testing Viewing angle of 178 (h) x 178 (v), for sharp colors and graphics in both portrait and landscape modes Display Port and VGA video interfaces Technical InformationViewable Screen Size: 21.5"Screen Mode: Full HDResponse Time: 14 msAspect Ratio: 16: 9Mount Type: Flush MountBacklight Technology: LEDVideoMaximum Resolution: 1920 x 1080Color Supported: 16.7 Million ColorsContrast Ratio: 1,000: 1Brightness: 250 NitTouchscreen InformationTouchscreen Type: Projected CapacitiveMulti-touch Screen: YesInterfaces/PortsHDMI: YesUSB: YesVGA: YesDisplayPort: YesPower DescriptionOperating Power Consumption: 25 WPhysical CharacteristicsVESA Mount Compatible: YesColor: BlackHeight: 12.2"Width: 20.3"Depth: 1.5"Weight (Approximate): 11.24 lb
Enclosure Color
Black Touch Technology and Capacity
PCAP (TouchPro Projected Capacitive) - 10 Touch Touch Interface
USB 2.0 Diagonal Size
21.5" diagonal, Active matrix TFT LCD (LED) On Screen Display
Accessible through switches on the units tethered OSD Control box.
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Through
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
Aspect Ratio
16:9 Active Area (mm)
18.76" x 10.55" / 476.64mm x 268.11mm Resolution
1920 x 1080 Other Supported Resolutions
640 x 480 60Hz
720 x 400 70Hz
800 x 500, 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50, 60Hz
Viewing Angle
Horizontal: +/-89^o or 178^o total / Vertical: +/-89^o or 178^o total Number of Colors
16.7 million Brightness (typical)
225 nits Response Time-total (typical)
14 msec Contrast Ratio
1000:1 Input Video Format
HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of Display Port video input
Input Video Frequency
Horizontal: 30 - 82 KHz
Vertical: 50 - 75 Hz
Video Interface
HDMI, VGA and Display Port Power Supply
External DC - Optional power brick (sold separately) Input power connector (Monitor)
Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth) Input Voltage
12VDC +/- 5%
