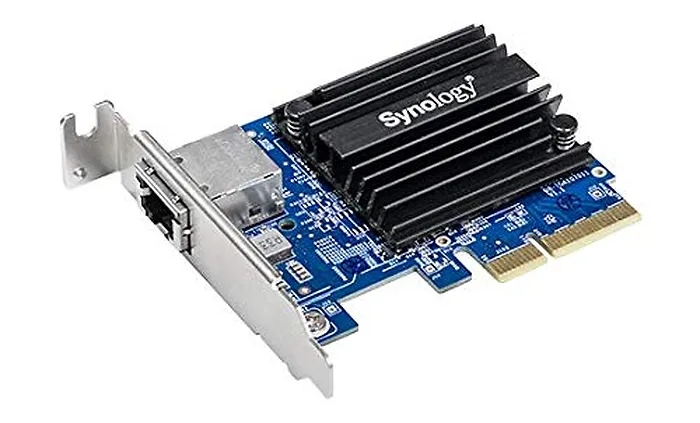

General InformationFlexible and economic solution for 10GbE adoption Equipped with an RJ-45 connector and supports IEEE 802.3an/bz (10GBASE-T/NBASE-T) and 802.3x, E10G18-T1 helps you smoothly migrate to a 10GbE networking environment with your existing infrastructure. Supporting backward compatibility and auto-negotiation between 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, and 100Mbps, E10G18-T1 is an economic solution to overcome the data transmission bottleneck for small businesses and home users.Interfaces/PortsHost Interface: PCI Express 3.0 x4Total Number of Ports: 1Number of Network (RJ-45) Ports: 1Media & PerformanceMedia Type Supported: Twisted PairNetwork & CommunicationNetwork Technology: 10GBase-TPhysical CharacteristicsForm Factor: Plug-in CardHeight: 3.4"Width: 2.7"Depth: 0.5"MiscellaneousDevice Supported: NAS Storage Device
General Specifications
Standards
IEEE 802.3an 10Gbps Ethernet
IEEE 802.3bz 2.5Gbps/ 5Gbps Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control
Data Transfer Rates
10 Gbps
Network Operation Mode
Full Duplex
Supported Features
9 KB Jumbo Frame
TCP/UDP/IP Checksum Offloading
Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s
Applied Models
FS3017
FS2017
FS1018
RS18017xs+
RS18016xs+
RC18015xs+
RS10613xs+
RS4017xs+
RS3617xs+
RS3614xs+
RS3413xs+
RS3618xs
RS3617RPxs
RS3617xs
RS3614(RP)xs
RS3412(RP)xs
RS3411(RP)xs
DS3617xs
DS3615xs
DS3612xs
DS3611xs
DS3018xs
RS2818RP+
RS2418(RP)+
RS1219+
RS818(RP)+
DS1817+
DS1618+
DS1517+
Note
DSM version requirement: 6.2-23739-2 onward (or 6.1-15284-2 onward with DSM 6.1)
Hardware Specifications
PCIe Interface
PCIe 3.0 x4
Bracket Height
Low Profile and Full Height
Operating Temperature
0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature
-20^oC to 60^oC (-5^oF to 140^oF)
Relative Humidity
5% to 95% RH
Item Dimension (L"xW"xH")
4 x 3 x 1
Weight
1.00 LB
Warranty Information
5 Years
