Physical Interface

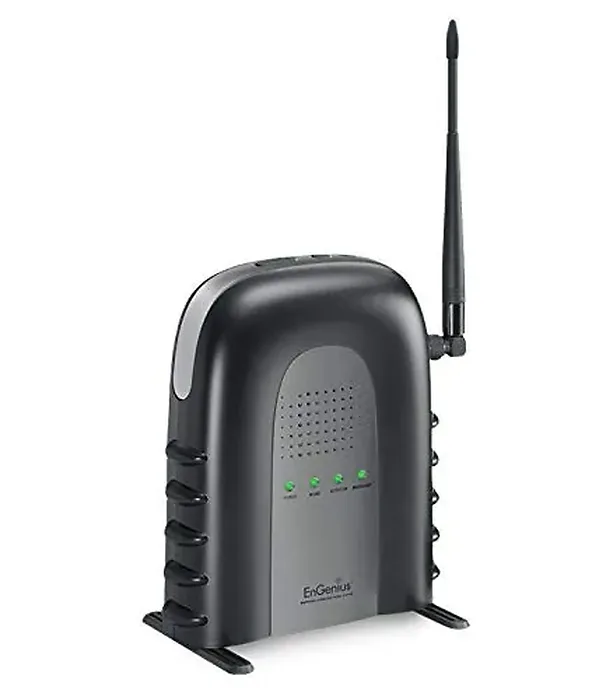

Base Station
Buttons
Reset
Registration
Broadcast
Intercom
Volume Up/Down
Jack(s)
Line x 1
LAN x 1
Audio-In x 1
Type-B USB x 1
DC x 1
Grounding
LED Indicators
Power
In-Use
Intercom
Broadcast Electrical Specifications
Frequency
902-928 MHz
RF Power
Peak: 708 mW Average: 354 mW
Channel Spacing
200 kHz
Number of Channels
128
Modulation
MSK
Multiple Access
Frequency Hopping TDMA
Frequency Hopping Rate
100 per second
TDMA Frame Length
10 ms
Number of Talk Paths
4
Receiver Sensitivity
< -108 dBm (at BER 10-2)
Antenna Connector
Reverse TNC
Antenna Gain
2 dBi (included)
6 dBi Outdoor (optional)
2.7 dBi Indoor (optional)
TX Power Control Range
N/A
Telephone Interface
RJ11 x 1
VoIP Interface
RJ45 x 1
Default IP Address
192.186.1.156
Default User Name and Pswd
admin/admin
SIP Protocol
RFC 3261
Speech Coding
64Kbps G.711a, G.711u
8 kbps G.729A
Channel Coding
8 kbps Convolutional + CRC
Transmission Data Rate
170.667 kbps
User Data Rate
128 kbps Duplex
Duplex
Time Division Duplex (TDD)
Voice Quality
TIA/EIA-470B
Number of System IDs
65,536
Ring Signal
20-50 Hz, 15-90 Vrms
Auto-Attendant Coding
N/A
Flash Time
100-900 ms Programmable
Power Source
100-240V/12V AC/DC Adapter
Charge Time
N/A
Charge Current
N/A
Battery Talk and Standby Time
N/A Environmental Specifications
Regulation Compliance
FCC Part 15, Part 68
Operating Temperature
32 122^oF (0 50^oC)
Storage Temperature
14 158^oF (-10 70^oC)
Humidity
20 - 75 %
IP Rating
N/A Package Includes
1 - Phone Base unit w/ rubber antenna
1 - Base unit AC adapter Item Dimension (L"xW"xH")
NA

Weight
4.4 lbs

Warranty Information
1 Year
