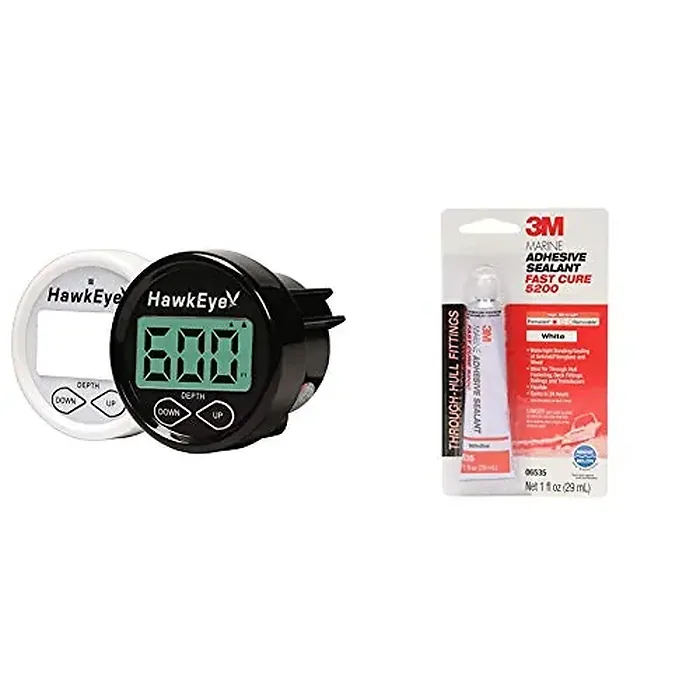

DepthTrax 2B In-Dash Digital Depth Gauge - Transom/In-Hull Transducer

The DepthTrax 2B is an updated version of DepthTrax 1B. Following years of exhaustive R&D and field testing, we've updated the SONAR algorithms of the DepthTrax 2B to reach new depths. Able to reach depths of 600 ft and tuned for high speed performance, the DepthTrax 2B reaches deeper and performs faster than any depth finder we've ever produced.  The DepthTrax 2B delivers a combination of performance and affordability unrivaled in any other depth sounder.

The foundation of the DepthTrax 2B is our proprietary algorithmic programming, which significantly reduces false readings and produces unmatched precision. Depth readings are updated four times per second on the no glare, polarized LCD icon display.  We’ve even incorporated a waterproof plug and play transducer connector and a waterproof fuse holder. Finally, we’ve perfected customization with our patented interchangeable face/bezel system. The DepthTrax 2B includes white/black face-plates and trim rings, allowing custom matching to most boat dash configurations. We even throw in a storage sun cover for good measure.  The DepthTrax 2B comes standard with HawkEye’s® exclusive high-speed, dual-mount transducer that can be transom mounted or glued inside most boat hulls.

EasyTouch Programming™ gives one-touch access to the user adjustable settings:

•  Keel offset adjustment automatically adjusts depth readings for a vessels’ draft requirements. Dual upper and lower depth alarms can be set throughout the full depth range.
• A 3-stage Advanced Warning System™ clearly signals an alarm condition with an audible alarm, an ultra bright red LED warning light and LCD alarm indicators.
• One-touch alarm muting instantly turns off audible depth alarms.
• User selectable feet or meter readout.
• Automatic memory retention of all user settings.

We’ve even incorporated a waterproof plug and play transducer connector and a waterproof fuse holder. Finally, we’ve perfected customization with our patented interchangeable face/bezel system.  The DepthTrax 2B includes white/black face-plates and trim rings, allowing custom matching to most boat dash configurations. We even throw in a storage sun cover for good measure.

The DepthTrax 2B comes standard with HawkEye’s® exclusive high-speed, dual-mount transducer that can be transom mounted or glued inside most boat hulls.

Features:

• 600 ft depth range
• DepthTrax intelligent sonar
• Automatic range & sensitivity
• Dual depth alarms
• 3-stage advanced warning system
• 1-touch alarm muting
• Keel offset
• Algorithmic software
• Metric & Imperial readings
• Polarized LCD
• LED backlighting
• Easytouch programming
• Includes 4 color combinations
• Dual Mount transducer
• Fully customizable
• Waterproof front face
• Designed and supported in the USA
• 2 year warranty

In Dash Depth Finder w/Transom/In-Hull Mount Transducer - 2-1/8 Cutout

The high-tech, multipurpose fish finders are designed to produce a range of readings from bottom contour, fish location, and thermoclines, to a variety of other useful sonar data. However, the technology used to decipher between these different signals coupled with the configuration of their specialized transducers greatly reduces their ability to give instant bottom readings. The HawkEye® D10D Digital Depth Sounder is engineered to give precise depth readings from 2.5 to 200 (.7 to 60.9 M) feet, at speeds up to 63 mph (101 kph). Say goodbye to the days of not knowing the depth while running your boat on plane.

Features:

• Algorithmic Programming Significantly Reduces False Readings and Produces Unmatched Precision
• Instant Depth Updates to the Nearest 1/10th Foot or Meter (under 99.9 Feet) Updated Four Times Per Second
• Smart, Digital Programming Allows Use Side by Side with Other Sonar Devices; Even Fish Finders
• EasyTouch ProgrammingTM Permits One-Touch Access to the User Adjustable Settings
• User Programmable Keel Offset Automatically Adjusts Depth Readings for Vessels Draft Requirements
• User Selectable Feet or Meter Readout
• Dual Upper and Lower Depth Alarms Can Be Set Throughout the Full Depth Range
• 3-Stage Advanced Warning SystemTM Clearly Signals an Alarm Condition with an Audible Alarm, LED and LCD Indicators
• One-Touch Alarm Muting
• Automatic Memory Retention of All User Settings
• High Speed, Dual Mount Transducer (Transom/In-Hull)
• ShootThruTM Sonar Technology Allows Readings to be Obtained Through Solid Fiberglass and up to 1/8th Inch Aluminum Hulls
• Removable Transom Transducer Bracket for Low-Profile In-Hull Mounting
• HawkEye® Transducer Exchange Program Adapts to Special Mounting Needs
• Removable Face System - System Includes Both White and Black Color Combinations
• No Glare, Polarized LCD Icon Display - Spot Free Viewing With or Without Sunglasses
• Largest Display Available on an In-Dash Depth Sounder
• SoftGlowTM Backlit Display and Programming Keys- Low Intensity, Low Temperature Lighting Prevents Eye Strain and Condensation While Providing Unparalleled Nighttime Viewing
• Flush Mount Extension for Mounting In Extra Thick Dash Panels
• Waterproof Transducer Plug
• Waterproof Front Face
• 2-Year Warranty
