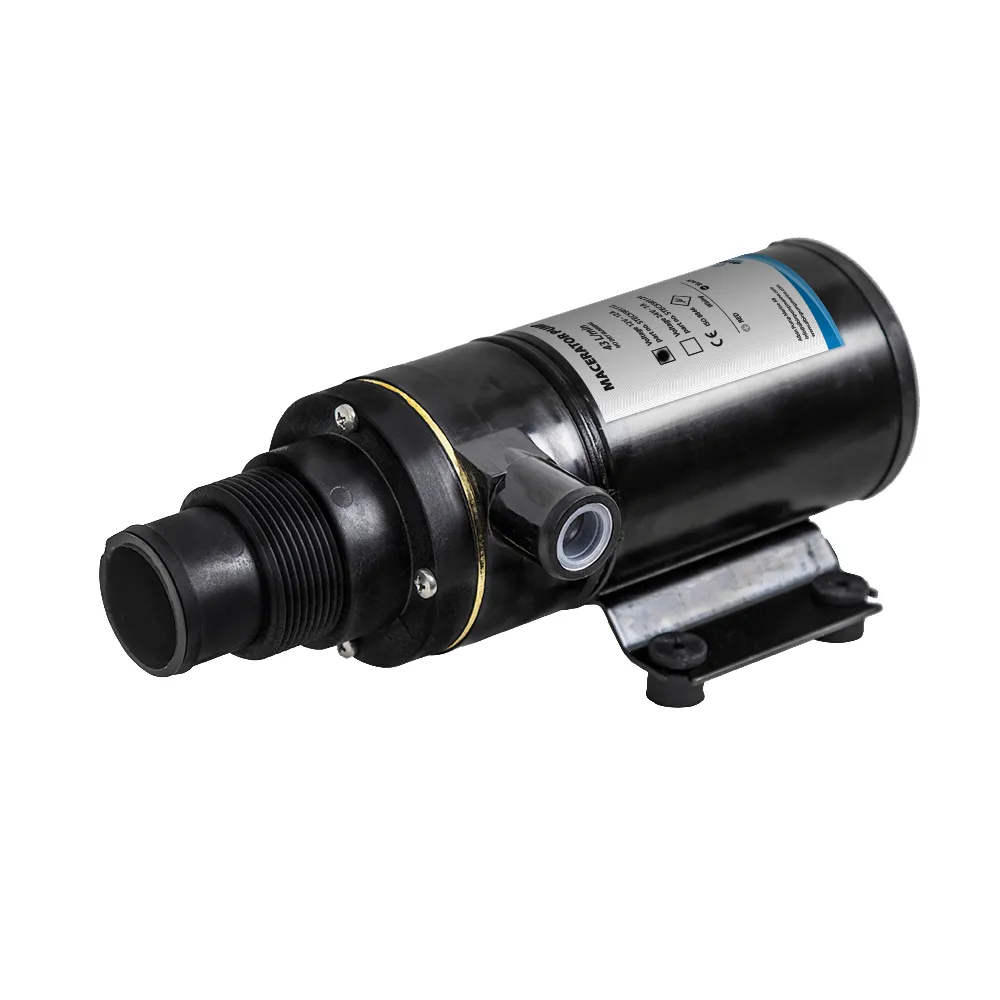

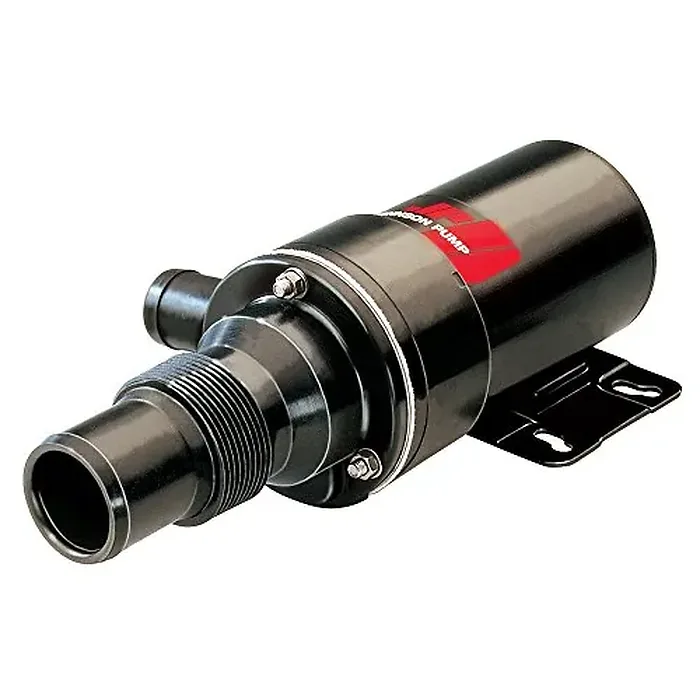

Macerator Pump TA3P10-19, 12v The Johnson Pump brand TA3P10-19 Macerator pump takes care of the toilet waste, shredding it before it is pumped into or out from the holding tank. The pump should be connected as close as possible to the holding tank discharge outlet or the bowl discharge outlet. Note! Use unbleached lavatory paper only. CE-Approved
Features:
Ignition protected motor, conforming with ISO 8846 Marine
Mounting bracket for easy replacement
Extremely energy efficient
Rotary cutter casing of PET (thermoplastic polyester)
Directly connected to sewage line or holding tank
Capacity at 0.2 bar (6.7 ft):37 l/min - 10 GPM
Inlet Connection:11/2" (dia 38 mm) hose or 11/2"NPT
Amperage: 15 A
Fuse Size: 20 A
Outlet Connection: 1" (25.4 mm) hose
Motor: 12V DC (with built-in thermal protection)
Pump Body: Phenol Plastic (PF)
Impeller: Nitrile
Cutter Casing: Thermoplastic Polyester (PET)
Shaft: Stainless Steel
Seal: Lip Seal
Length: 230 mm - 9.06"
Width: 108 mm - 4.25"
Height: 82 mm - 3.23"
Weight: 1.9 kg - 4.2 lbs
