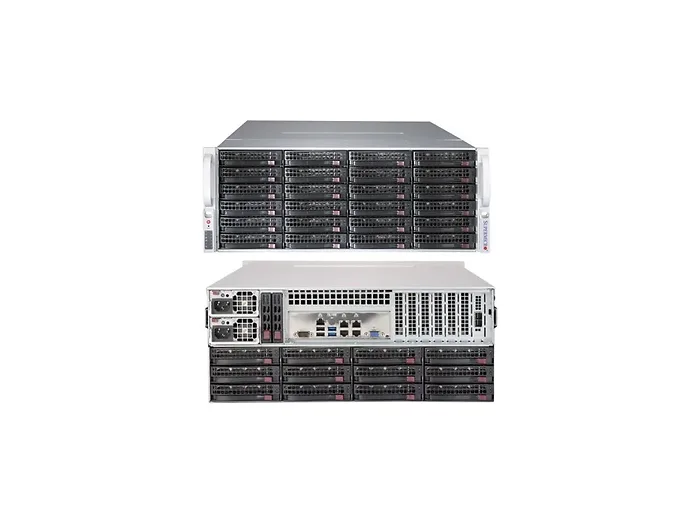

Supermicro Case CSE-847BE1C4-R1K23LPB 4U 36x3.5 inch Hot Swap SAS/SATA with SES3 Retail
Form Factor
4U Chassis for motherboard support size: (12" x 10") (13.68" x 13") (9.6" x 9.6")
Processor Support
Single and Dual Intel and AMD processors
Available Color
Black
Expansion Slots
7 low-profile expansion slot(s)
Drive Bays
36 x 3.5" hot-swap SAS/SATA drive bay with SES3
Optional 2 x 2.5" hot-swap drive bay
Backplane
12-port 2U SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
Peripheral Drives
Optional 2 x 3.5" internal fixed drive bay
Optional 4 x 2.5" internal fixed drive bay
Front Panel
Buttons
Power On/Off button
System Reset Button
LEDs
2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED
Motherboard (for CSE- 847BE1C4-R1K23LPB)
X11SPH-nCTF
X11SPH-nCTPF
X11DPH-T
X11DPH-I
X11DPH-TQ
Servers (for CSE- 847BE1C4-R1K23LPB)
5049P-E1CTR36L
Systems Cooling
Fans
7 x 80mm high-performance fan(s)
System Monitoring
Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
5^oC - 35^oC (41^oF - 95^oF)
Non-Operating Temperature Range
-40^oC - 70^oC (-40^oF - 158^oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Power Efficiency
96%
Total Output Power and Input
1000W with Input 100 - 127Vac
1200W with Input 200 - 240Vac
1200W with Input 200 - 240Vdc
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
336 x 76 x 40 mm
Output Type
Backplanes (gold finger)
+12V
Max: 83A (100Vac - 127Vac)
Max: 100A (200Vac - 240Vac)
Max: 100A (200 - 240)
+5Vsb
Max: 4A / Min: 0A
Power Distributor
PDB-PT847-8824
O/P: 12V/135
+5V Max: 100
+3.3V Max: 30
-12V Max: 0.6
Certification
Titanium Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
Item Dimension (L"xW"xH")
40 x 28 x 18
Weight
146.00 LB
Warranty Information
3 Year
