Form Factor

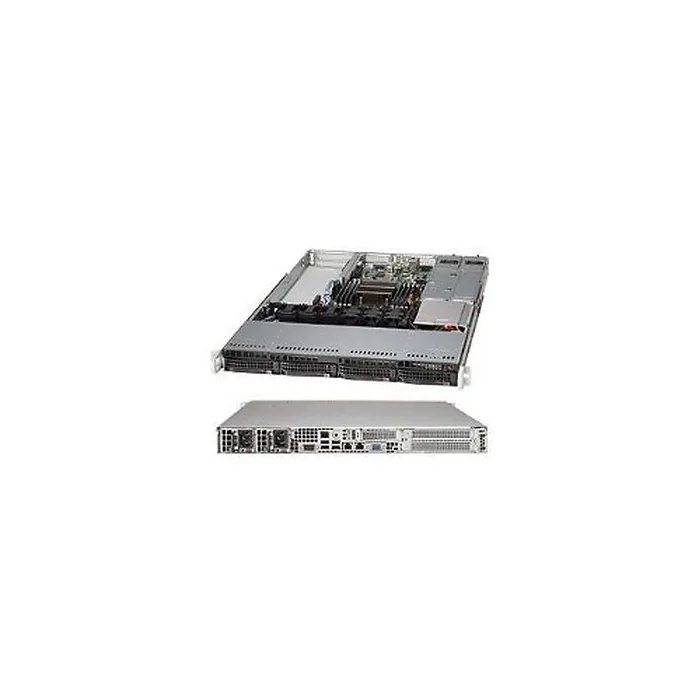

1Uchassis for motherboard support size of Proprietary 12 inch x 13 inch Optimized for WIO (W series) motherboards Processor Support
Supports dual, single Intel / AMD processors Available Color
Black Expansion Slots
2x Full-height Expansion Slots (Riser Card Required) Drive Bays
Hot-Swap :

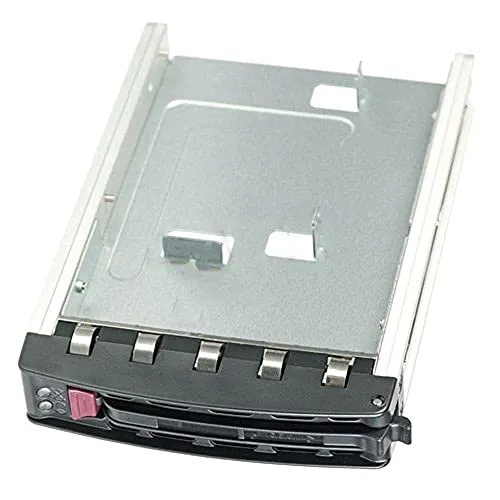

4x 3.5 inch hot-swap SAS/SATA
SAS or enterprise SATA HDD only recommended Backplane
1U SAS/SATA Backplane with SES2 support Peripheral Drives
DVD ROM : Slim DVD-ROM drive (optional) Buttons
Power On/Off button
System Reset Button
Unit Identification (UID) button LEDs
2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED Fans
4x 40x56mm counter-rotation PWM fan Operating Temperature Range
5^oC to 35^oC (41^oF to 95^oF) Non-Operating Temperature Range
-40^oC to 60^oC (-40^oF to 140^oF) Operating Relative Humidity Range
8 percent to 90 percent (non-condensing) Non-Operating Relative Humidity Range
5 percent to 95 percent (non-condensing) Power Supply

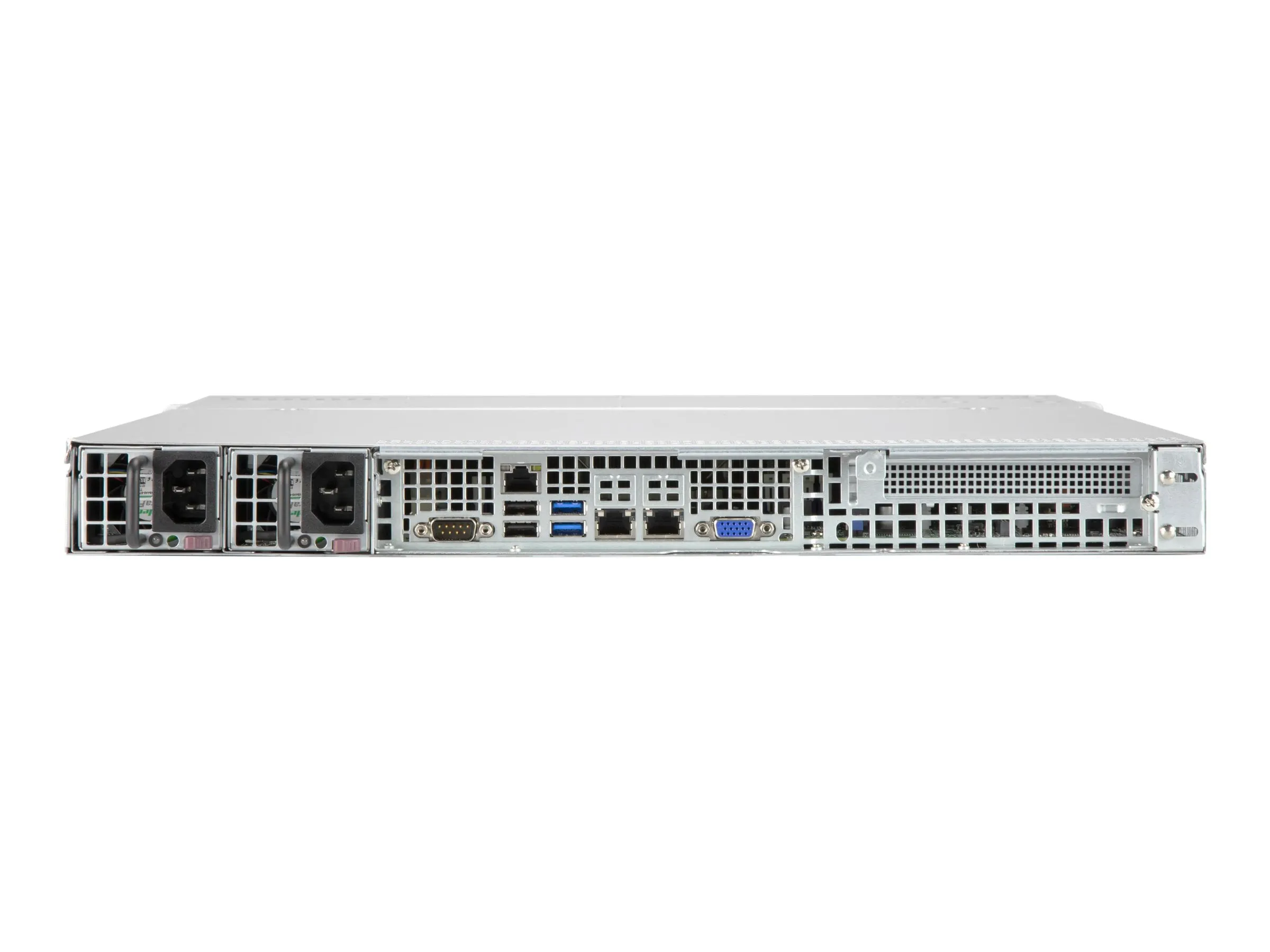

700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C AC Voltage
700W : 100 - 140 V, 50-60 Hz
750W : 200 - 240V, 50-60 Hz DC Output +5V standby
3 Amp DC Output +12V
700W: 58 Amp at 100-140V
750W: 62 Amp at 200-240V Certification
80PLUS PLATINUM Power Supply Safety / EMC
USA - UL listed, FCC
Canada - CUL listed
Germany - TUV Certified
Europe/CE Mark
EN 60950/IEC 60950-Compliant
