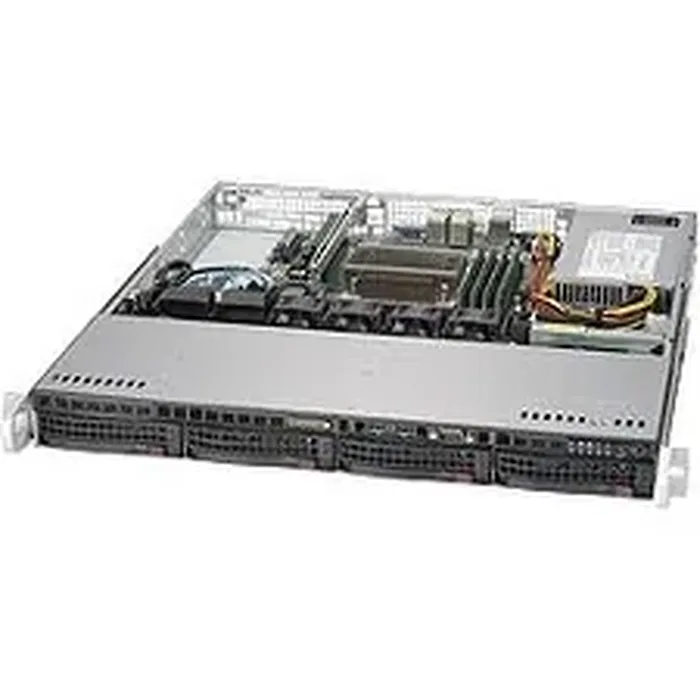

Supermicro Server Case CSE-813MFTQC-350CB 1U 4x3.5 inch Hotswap SAS/SATA 350
Form Factor
1U Chassis for motherboard support size: (12" x 10")(9.6" x 9.6") Processor Support
Dual, single Intel / AMD processors Available Color
Black Expansion Slots
Up to 1 full-height and full-length expansion slot(s) Drive Bays
4 x 3.5" hot-swap SAS/SATA Backplane
4-port 1U SAS3 12Gbps TQ backplane,support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD Peripheral Drives
Optional 1 x Slim DVD-ROM Drive Front Panel
Buttons: Power On/Off button
System Reset Button
LEDs: 2 Network Activity LEDs
HDD activity LED
Power Status LED
System Information LED Motherboard(for CSE-813MFTQC-350CB)
X11SSH-F, X11SSH-LN4F, X11SSi-LN4F, X11SSL-F, X11SSL-CF, X11SSL-nF, X11SSL, X11SSM-F, X11SSM, X11SSH-CTF, X11SSH-TF, X11SSZ-TLN4F, X11SSZ-F, X11SSZ-QF, X10SRM-TF, X10SRM-F, X11SSH-GTF-1585, X11SSH-GF-1585, X11SSH-GTF-1585L, X11SSH-GF-1585L Servers (for CSE- 813MFTQC-350CB)
5019S-M-G1585L, 5019S-M2 Systems Cooling
Fans: 4 x 40x28mm PWM fan(s)
Optional 2 x 40x28mm PWM fan(s) Operating Environment (System)
Operating Temperature Range: 5^oC - 35^oC (41^oF - 95^oF)
Non-Operating Temperature Range: -40^oC - 70^oC (-40^oF - 158^oF)
Operating Relative Humidity Range: 8% - 90% (non-condensing)
Non-Operating Relative Humidity: 5% - 95% (non-condensing) Power Supply
1U 350W Multi-output power supply Platinum level
Power Efficiency: 93%
Total Output Power and Input: 350W with Input 100 - 240Vac
AC Input Frequency: 50-60Hz
Output Type: 24pin ATX
-12V: Max: .2A / Min: 0A
+12V: Max: 29A / Min: .5A (100Vac - 240Vac)
+5V: Max: 15A / Min: .2A
+3.3V: Max: 12A / Min: .2A
+5Vsb: Max: 3A / Min: 0A
Certification: Platinum Certified Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class B
TUV/CB Item Dimension (L"xW"xH")
20 x 18 x 2

Weight
31 lb

Warranty Information
1 Year
