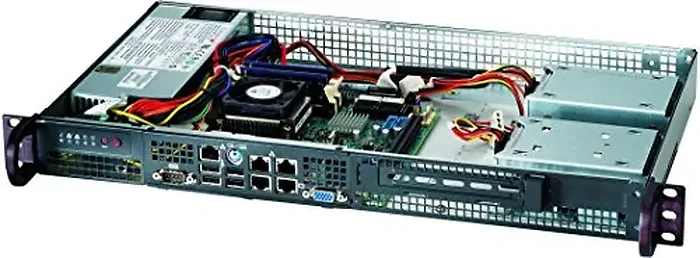

Supermicro Case CSE-505-203B Mini-ITX 1U 9.8inch Depth 200W 80PLUS 1x3.5inch Black Retail

MFG No: CSE-505-203B
SKU No: I4L9ES0FEL
UPC: 672042134205
MFG. Name: Supermicro
Available: 5
Condition: New

$187.23


Rack-mountable - 1U - mini ITX - non-hot-swap 200 Watt - black
Form Factor
9.8"-Depth Mini 1U chassis support for maximum motherboard size - 6.75" x 6.75"

Processor Support
Single Processor Support

Available Colors
Black Expansion Slots
Up to 1x full-height, half-length PCI expansions slot

Drive Bays
Internal
Bay 1x 3.5" Internal Drive Bay with 1x Half-height, Half-length PCI OR 2x 3.5" Internal Drive Bay OR 2x 2.5" Internal Drive Bay with 1x Full-height, Half-length PCI OR 4x 2.5" Internal Drive Bay Ony SAS or enterprise SATA HDD recommended Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED I/O Ports
1x VGA, IPMI, 4xLANs, 1x COM, 4xUSB, 1xKeyboard/Mouse

Power Supply
200W Low Noise AC-DC power supply with PFC
AC Voltage
100 - 240V, 50-60Hz, 2.6 Amp Max
+5V
8.0 Amp (max.)
+5V standby
2.0 Amp (max.)
+12V
16 Amp (max.)
-12V
0.5 Amp (max.)
+3.3V
8.0 Amp (max.)
Certification
Gold Certified Regulatory (Power Supply)
Power Supply Safety / EMC
USA - UL listed, FCC
Canada - CUL listed
CCC Certification
EN 60950/IEC 60950-Compliant
Europe/CE Mark
Germany - TUV Certified Item Dimension (L"xW"xH"):
25.8 x 18.3 x 6.1

Weight:
17.35 lb

Warranty Information:
1 Year
