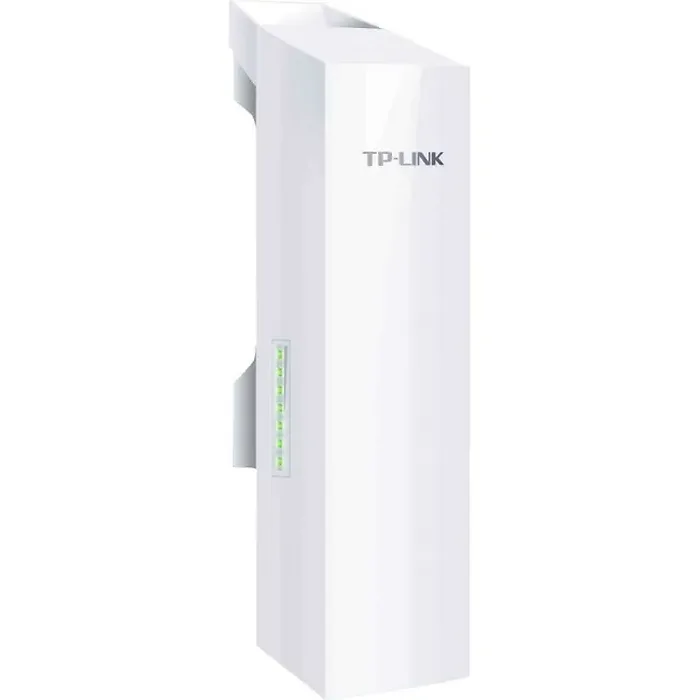

- Built-in 9dBi 2x2 dual-polarized directional MIMO antenna- Adjustable transmission power from 0 to 27dBm/500mw- System-level optimizations for more than 5km long range wireless transmission- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications- Centralized Management System r Pharos Control- AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
HARDWARE FEATURES
Processor:Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory:64MB DDR2 RAM, 8MB Flash

Interface:
1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
1 Grounding Terminal
1 Reset Button Dimensions (W X D X H):224 x 79 x 60 mm

Antenna Type:Built-in 9dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 65 (H-Plane) / 35 (E-Plane)
Note: For more details, please refer to datasheet

Protection:15KV ESD Protection
6000V Lightning Protection Power Consumption:
10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. Power Supply:
Passive Power over Ethernet via LAN0 (+4,5pins -7,8pins)
Voltage range: 16-27VDC

Enclosure:
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification WIRELESS FEATURES
Wireless Standards:IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol:TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds:
Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic) Frequency:
2.4-2.483GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. Reception Sensitivity:
802.11b:
11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm
802.11g:
54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm
802.11n:
MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm,
MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm,
MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm,
MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm,
MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm Transmission Power:
27dBm/500mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. SOFTWARE FEATURES
Wireless Configurations:
Pharos MAXtream TDMA Technology
802.11b/g/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia Management:
Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server System Tools:
Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute

System-level Optimizations:
Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog OTHERS
Certification:CE, FCC, RoHS, IPX5

Package Contents:
Outdoor Wireless CPE
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide System Requirements:
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. POE ADAPTER FEATURES
Button:Remote Reset Button
Certifications:CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Dimensions(W x D x H):1105733.5mm
Efficiency:>80%
Input:100-240VAC, 50/60Hz
Input Current:0.8A Max at 100VAC
Input Voltage:100VA-240VAC at 50Hz-60Hz Interfaces:
1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)

Output:24VDC, 1.0A Max
+4, 5pins -7, 8pins. (Support up to 60m Power over Ethernet)

Output Voltage:24VDC(+4,5pins -7,8pins)

Power Status LEDs:
0-0.8A: Green
0.8A-1.0A: Red Item Dimension (L"xW"xH"):
10.63 x 5.20 x 4.17

Weight:
1.85 lb

Warranty Information:
2 years
