Type

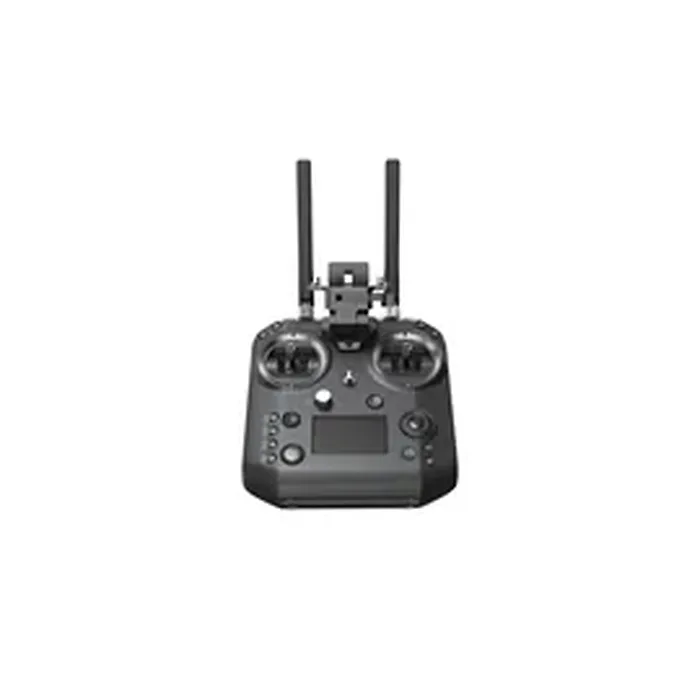

GL800A Operating Frequency
2.400-2.483 GHz, 5.725-5.825 GHz Max Transmitting Distance (unobstructed, free of interference)
2.4 GHz: 4.3 miles (7 km, FCC) 2.2 miles (3.5 km, CE) 2.5 miles (4 km, SRRC)
5.8 GHz: 4.3 miles (7 km, FCC) 1.2 miles (2 km, CE) 3.1 miles (5 km, SRRC) EIRP
2.4 GHz: 26 dBm (FCC) 17 dBm (CE) 20 dBm (SRRC)
5.8 GHz: 28 dBm (FCC) 14 dBm (CE) 20 dBm (SRRC) Power Supply
Intelligent Battery (Type: WB37-4920mAh-7.6V) Intelligent Battery
4923 mAh LiPo Charging
DJI charger Output Power
20 W (supplying power to DJI CS550 monitor)
12 W (without supplying power to monitor) Video Output Ports
USB, HDMI, SDI USB Supply Power
iOS: 1 A, 5.2 V (Max) Android: 1.5 A, 5.2 V (Max) Dual User Capability
Host-and-Slave connection Operating Temperature
-4 ^o to 104 ^oF (-20 ^o to 40 ^oC) Storage Temperature
Less than 3 months: -4 ^o to 113 ^oF (-20 ^oto 45 ^oC)
More than 3 months: 72 ^oto 82 ^oF (22 ^oto 28 ^oC) Charging Temperature
32 ^o to 104 ^oF (0 ^oto 40 ^oC) Charging Time
About 2 hours and 24 minutes (using a 180 W charger) Supply Power Time
About 4 hours (only Master remote controller function enabled and without supplying power to monitor) Item Dimension (L inchxW inchxH inch)
7 x 4 x 3

Weight
2.00 lb

Warranty Information
1 Year
