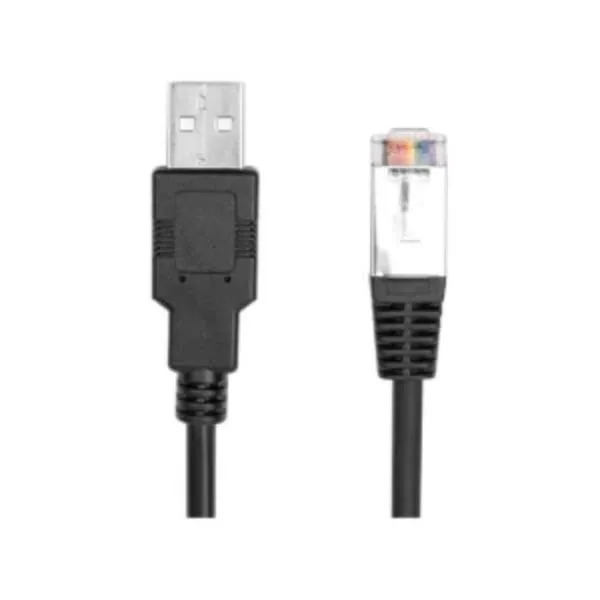

6FT / 1.8 M - USB TO RJ45
HARDWARE
Bus Type
USB 2.0
Cable Jacket Type
PVC - Polyvinyl Chloride
Chipset ID
Prolific PL2303HXD
Industry Standards
USB 1.1/2.0, RS-232
Port Style
Cable Adapters
Ports
1
PERFORMANCE
Data Bits
5, 6, 7, 8
FIFO
512 Bytes
Max Baud Rate
460.8 Kbps
Parity
Odd, Even, Mark, Space, or None
Stop Bits
1, 1.5, 2
Supported Protocols
RS-232
CONNECTOR(S)
Connector A
1 - USB Type-A (4 pin) USB 2.0 Male
Connector B
1 - RJ-45 Male
SOFTWARE
OS Compatibility
Windows 7, 8, 8.1, 10
Windows Server 2008 R2, 2012, 2012 R2, 2016
Mac OS 10.6 to 10.14
Linux 2.4.31 to 4.11.x LTS version only
SPECIAL NOTES / REQUIREMENTS
System and Cable Requirements
One available USB 1.1 (or above) port
POWER
Power Source
Bus Powered
ENVIRONMENTAL
Humidity
20 to 80% RH
Operating Temperature
0^oC to 70^oC (32^oF to 158^oF)
Storage Temperature
-20^oC to 80^oC (-4^oF to 176^oF)
PHYSICAL CHARACTERISTICS
Cable Length
6 ft 1.8 m
Color
Black
Enclosure Type
Plastic
Wire Gauge
28 AWG
WHATS IN THE BOX
Included in Package
1 - USB to RJ45 Rollover Cable
1 - Quick-Start Guide
Connector Plating
Nickel
Item Dimension ( L inchxW inchxH inch)
7 x 6 x 2 Weight
1 lb Warranty Information
2 Year Warranty
