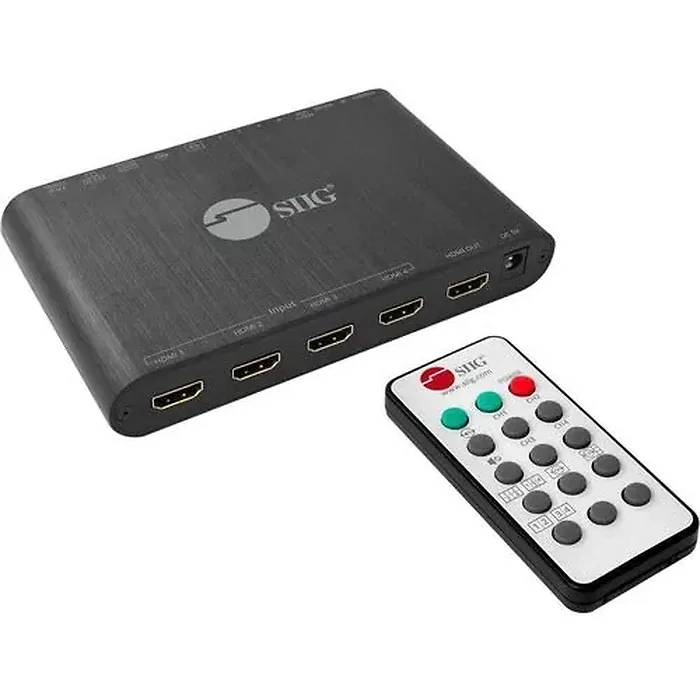

4X1 HDMI SEAMLESS QUAD-SPLIT MULTI VIEWR
Compatible with HDMI 1.3 and HDCP 1.4
Input resolution:
480i /480p / 576i / 576p / 720p / 1080i / 1080p
Output resolution:
720p at 60Hz / 1080p at 60Hz
Video bandwidth:
6.75Gbps
Display modes:
Quad-View Mode, Quad-View Cycled Mode, Quad-View H mode: 4 HDMI sources displayed on 1 screen
Dual-View Mode: 2 HDMI sources displayed on 1 screen
One-View Mode: 1 HDMI source displayed on 1 screen
HDMI cable length:
Input: up to 10 meters
Output: up to 10 meters
Audio support:
Bypass Supports audio switch function
Supports audio extraction via stereo audio from selected HDMI input
Power consumption:
<5 watts
Color:
Black
Housing:
Aluminum
Connector:
4x 19-pin, HDMI, Female, Input
1x 19-pin, HDMI, Female, Output
3x Mode button
1x Audio button
1x Output resolution switch button
1x Micro-USB, software control / firmware update
1x DIP Switch
1x Power Jack
Power Adapter
Input: 100-240V AC / 50-60Hz
Output: DC 5V/2A
UL listed: E335801 / Level: VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 20% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
TAA compliant
Item Dimension (L"xW"xH")
6 x 1 x 4
Weight
1.00 LB
Warranty Information
3 years
