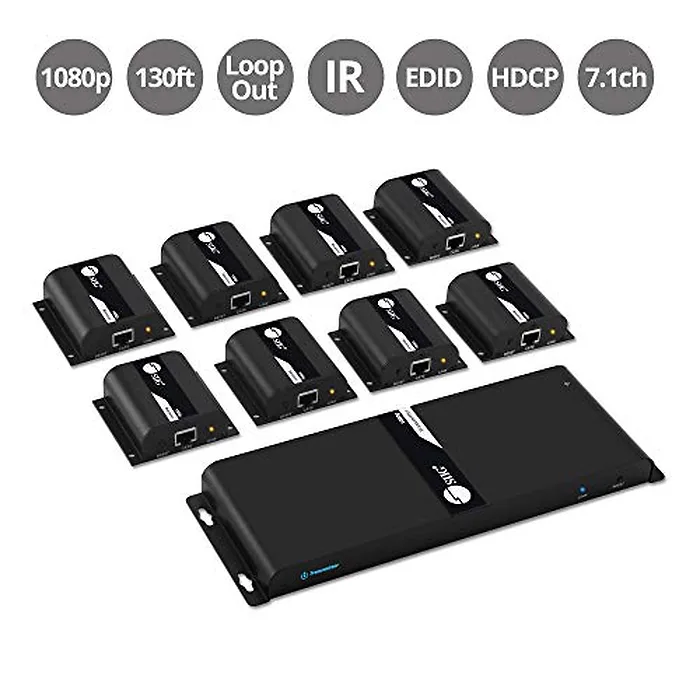

Extends 1080p signals up to 130 feet to eight HDMI displays over a single Cat6 cable.
Compliant with HDMI 1.3 and HDCP 1.2
Transmission distance:
up to 40m (130ft) at 1080p at 60Hz resolution
Supports Digital stereo 2-ch DTS and PCM 7.1-ch audio
Supports full frequency IR signal from 20KHz to 60KHz
Supports EDID manual setting function
Resolution:
480p / 720p / 1080i / 1080p 60Hz
Metal housing with wall mount design
Network cable:
UTP/STP CAT5e/6/6a/7
Product:
Transmitting unit (TX):
Housing: Metal
Color: Black
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 19-pin HDMI, Type A, Female, loopout
1x 3.5mm jack, IR Blaster
8x 8-pin, RJ45, HDMI signal output
1x Power jack
1x Reset button
1x 3-Pin Switch, EDID adjustment
Receiving unit (RX):
Housing: Metal
Color: Black
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR Receiver
1x 8-pin, RJ45, HDMI signal input
1x Power jack
1x Reset button
Power adapter:
Input: 100-240V / 50-60Hz
Output: DC 12V/2A for TX
Output: DC 5V/1A for RX
UL listed: E335801 / Level: VI
Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Notes:
This kit is point to point connection and comes with 1 Transmitter and 8 Receivers. Does not work through routers or network switches
Good quality Cat6 cables are essential in delivering reliable quality content
Item Dimension (L"xW"xH")
4 x 14 x 12
Weight
5.29 LB
Warranty Information
2 years
