General InformationExtends HDMI 1.4 audio and video signals, RS232 control, IR control, and Power over Cable (PoC) up to 100 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology Extends HDMI 1.4 audio and video signal from your HDMI source to a remote HDMI display up to 330ft (100m) at Full HD 1080p, up to 230ft (70m) at UHD 4K (3840x2160) through a single premium quality CAT5e/6 cableNote: The transmission distance will vary depending on cable quality, 100% copper and IEEE-568B wiring standard recommended Delivers crystal clear picture quality with resolution up to 3840x2160@30Hz (YUV 4: 4: 4 8-bit / YUV 4: 2: 0 10-bit) Pure unaltered uncompressed 7.1ch digital HDMI over CAT cable transmission, DTS-HD Master Audio and Dolby TrueHD high bit rate audio support Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered using only one power adapter connected to either unit Bi-directional IR sensors allow you to remotely control the HDMI source device at the remote display side or control the remote display at the source device side High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use Slim profile design easily adopts into versatile application environment, wall mountable housing for easy and varied installation requirements Technical InformationConnectivity Technology: WiredNumber of Input Devices Supported: 1Number of Output Devices Supported: 1Maximum Operating Distance: 328.08 ftVideoGraphics Modes: 4KMaximum Video Resolution: 3840 x 2160Interfaces/PortsNetwork (RJ-45): YesHDMI In: YesHDMI Out: YesSerial Port: YesNumber of Network (RJ-45) Ports: 2Number of HDMI Inputs: 1Number of HDMI Outputs: 1Media & PerformanceMedia Type Supported: Twisted PairTwisted Pair Cable Standard: Category 6Physical CharacteristicsTransmitter Height: 0.83"Transmitter Width: 2.87"Transmitter Depth: 4.06"Form Factor: Wall MountableTransmitter Weight (Approximate): 8 ozMiscellaneousPackage Contents: 4K HDMI HDBaseT Extender Over Single Cat5e/6 with RS-232, IR & PoC - 100m Power Adapter IR Blaster Extension Cable & IR Receiver Extension Cable 4 x Mounting Ears 8 x Screw kit 2 x Terminal Block kit User Reference Guide Environmentally Friendly: YesEnvironmental Certification: RoHSCountry of Origin: TaiwanTAA Compliant: YesWarrantyLimited Warranty: 3 Year

Compliant with HDMI 1.4 and HDCP 1.4
Supports HDCP and EDID bypass, Auto Skew Equalization, CEC, Deep Color and full 3D
Video Bandwidth: Up to 10.2Gbps (340MHz per channel)
Video Latency
< 20us
Audio
Surround sound (up to 7.1ch), stereo digital, DTS-HD Master Audio and Dolby TrueHD high bit rate
Supports full frequency IR signal from 20KHz to 60KHz
Bi-directional IR pass-through
Full Duplex RS-232 control up to 115,200bps through connector
Resolution
480p / 720p / 1080i / 1080p at 60Hz / 3840x2160p at 30Hz (YUV 4:4:4 8-bit / YUV 4:2:0 10-bit)
Supports PoC (Power over Cable)
allows a single power supply connected to either the TX or RX unit to power both units
ESD protection
+/-15kV Air / +/-8kV Contact
Aluminum housing with wall mount design
Transmission Protocol
HDBaseT technology
Note: Does not support connecting to Router or Switch
Transmission Distance
Note: The transmission distance will vary depending on cable quality, 100% copper and IEEE-568B wiring standard recommended
1080p at 60Hz: up to 330ft (100 meters)
3840x2160 at 30Hz: up to 230ft (70 meters)

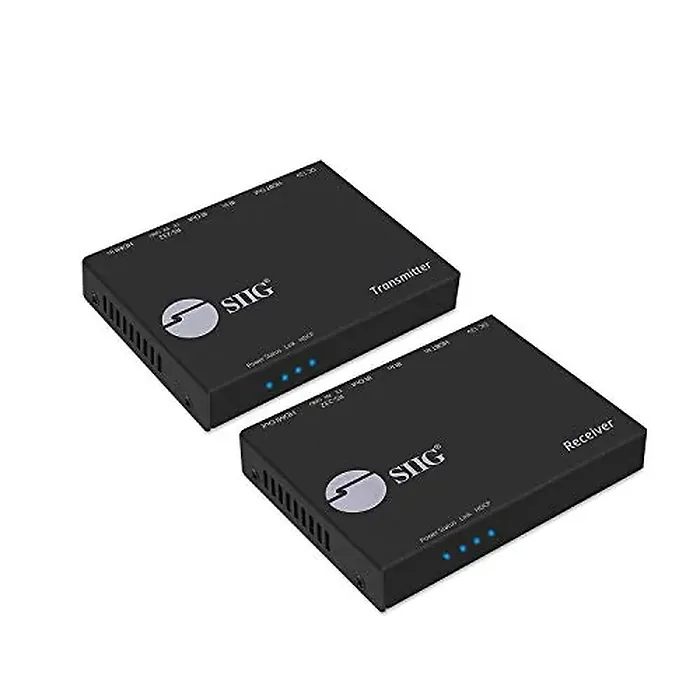

Product
Transmitting unit (TX):
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 8-pin, RJ45, output
1x 3.5mm jack, IR In
1x 3.5mm jack, IR Out
1x Power LED indicator
1x 3-Pin, RS-232, Phoenix connector
1x Power jack
Receiving unit (RX):
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 8-pin, RJ45, Input
1x 3.5mm jack, IR In
1x 3.5mm jack, IR Out
1x Power LED indicator
1x 3-Pin, RS-232, Phoenix connectorv
1x Power jack
Power Adapter
Input: 100-240V / 50-60Hz
Output: DC 12V/2A
UL Listed: E163743/Class VI
Environmental Conditions
Operating temperature: 32 to 104oF
Storage temperature: 14 to 158oF
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards
FCC, CE, RoHS
TAA compliant
Item Dimension (L"xW"xH")
7 x 11 x 4 Weight
3.00 LB Warranty Information
3 years
