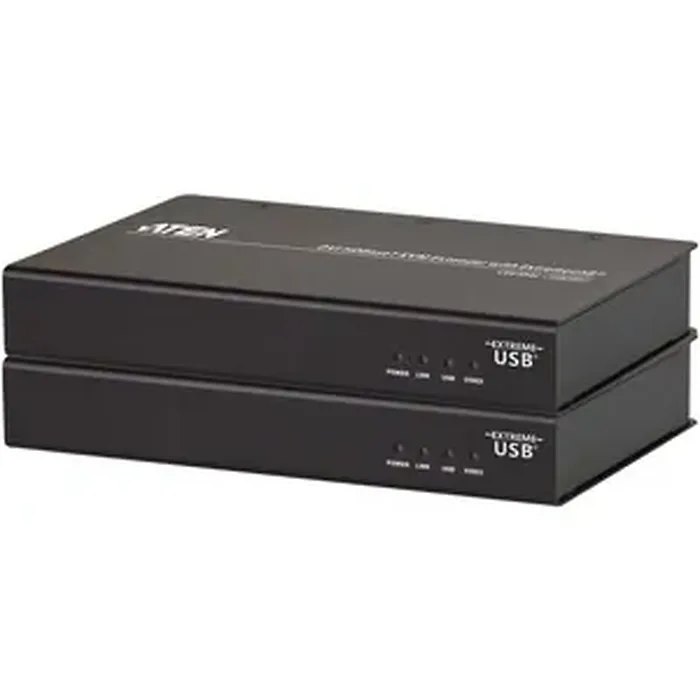

General InformationThe CE610A USB DVI KVM Extender is a DVI and USB Extender that supports ExtremeUSB and HDBaseT technology. The CE610A can extend DVI and USB 2.0 signals up to 300 ft (100 m) from the source using a single Cat 5e/6 cable. The CE610A is equipped with USB connectors which allow you to extend any USB device between the units. The USB functionality provides not only peripheral sharing but also the support for touch panel control and fi le transfer. The CE610A is ideal for situations where touch panel is required, such as transportation centers, medical facilities, shopping malls, industrial kiosks, and when synchronizing for files / folders between portable and desktop computers are required.Technical InformationConnectivity Technology: WiredNumber of Computers Supported: 1Number of Remote Users Supported: 1Maximum Operating Distance: 328.08 ftVideoGraphic Mode: WUXGAMaximum Video Resolution: 1920 x 1200Interfaces/PortsNetwork (RJ-45): YesUSB: YesDVI: YesNumber of Network (RJ-45) Ports: 2Number of USB Ports: 6Number of DVI Ports: 2Power DescriptionInput Voltage: 5 V DCPower Consumption: 15 WPhysical CharacteristicsForm Factor: Rack-mountableTransmitter Height: 1.13"Transmitter Width: 4.64"Transmitter Depth: 7.17"Receiver Height: 1.13"Receiver Width: 4.64"Receiver Depth: 7.17"Transmitter Weight (Approximate): 1.37 lbReceiver Weight (Approximate): 1.37 lbMiscellaneousPackage Contents: 1 x CE610AL DVI HDBaseT KVM Extender with ExtremeUSB (Local Unit) 1 x CE610AR DVI HDBaseT KVM Extender with ExtremeUSB (Remote Unit) 1 x Custom DVI Cable (DVI Dual Link; 1.8m/6ft) 1 x USB Cable (1.8m/6ft) 2 x Power Adapters 1 x Mounting Kit 1 x User Instructions Platform Supported: PCPlatform Supported: MacPlatform Supported: LinuxEnvironmentally Friendly: YesEnvironmental Certification: RoHSEnvironmental Certification: WEEE
