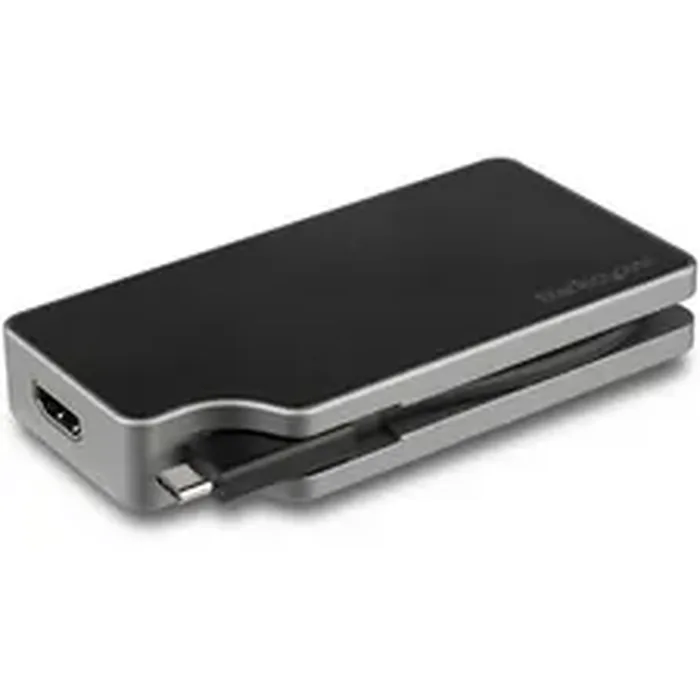

This USB-C multiport video adapter offers a portable solution for connecting your USB Type-C laptop to a VGA, DVI, HDMI or Mini DisplayPort (mDP) display. It features USB Power Delivery, so you can power your laptop while outputting video using the same USB-C port. Power and Video in One Port This USB-C adapter supports USB Power Delivery up to 95 watts and features an additional USB-C port. You can charge your laptop using its USB-C power adapter, even while you output video. Many laptops support charging through a USB-C port with Power Delivery, check your specifications to confirm compatibility. All-in-One Video Connectivity with Travel in Mind Carry one adapter instead of four. This versatile 4-in-1 monitor adapter lets you connect your USB-C laptop to any display. With its durable aluminum enclosure and a magnetic retainer that secures the breakout cable in place while you?re not using it, the adapter is rugged enough to carry in your travel bag. Astonishing Picture Quality The HDMI and mDP outputs support UHD 4K resolutions, providing four times the picture quality of high-definition 1080p. All of the outputs (HDMI, mDP, VGA, DVI) support high-definition resolutions up to 1920 x 1200. The adapter is compatible with USB-C DP Alt Mode devices. Stylish Connectivity The USB-C adapter has a Space Gray trim and built-in USB-C cable designed to match your Space Gray MacBook, or MacBook Pro.
Hardware
Active or Passive Adapter
Active
Adapter Style
Adapters
AV Input
USB Type-C
AV Output
HDMI
DVI-D
VGA
Mini-DisplayPort
Chipset ID
Parade - PS176
VIA/VLI - VL102
ITE -IT6516 Performance
Audio Specifications
HDMI or mDP output: 7.1 surround sound
Maximum Analog Resolutions
1920 x 1200 at 60Hz
Maximum Digital Resolutions
4096 X 2160 at 24Hz or 3840 X 2160 at 60Hz (HDMI)
4096 X 2160 at 60Hz (mDP)
Supported Resolutions
Maximum HDMI output: 4096 X 2160 at 24Hz or 3840 X 2160 at 60Hz
Maximum mDP output: 4096 X 2160 at 60Hz
Maximum DVI and VGA output: 1920 x 1200 at 60Hz
Lower resolutions and refresh rates may also be supported
Video Revision
HDMI 2.0
DisplayPort 1.2
Wide Screen Supported
Yes Connector(s)
Connector A
1 - USB-C (24 pin) DisplayPort Alt Mode Male Input
Connector B
1 - Mini-DisplayPort (20 pin) Female Output
1 - VGA (15 pin, High Density D-Sub) Female Output
1 - DVI-I (29 pin) Female Output
1 - HDMI (19 pin) Female Output
1 - USB-C (24 pin) USB Power Delivery only Female Input Special Notes / Requirements
Note
Only one video output is supported on the video adapter at a time, if multiple connections are made, only one of the outputs will function Power
Power Delivery
85W
Power Source
Bus Powered Environmental
Humidity
0-95% RH
Operating Temperature
0^oC to 45^oC (32^oF to 113^oF)
Storage Temperature
0^oC to 60^oC (32^oF to 140^oF) Physical Characteristics
Accent Color
Black and Space Gray
Cable Length
4 in 101 mm
Color
Black
Enclosure Type
Aluminum Whats in the Box
Included in Package
1 - Travel A/V Adapter Item Dimension (L"xW"xH")
7 x 6 x 2

Weight
1 lb

Warranty Information
3 Year Warranty
