General InformationEasily add a DisplayPort, HDMI, DVI, or VGA display to a Thunderbolt 3 or DisplayPort Alternate mode capable USB-C port Easily adds a 4K display to your Thunderbolt 3 and USB-C DisplayPort Alt enabled Ultrabook, laptop or desktop. Note: The USB-C source connection must support DisplayPort Alternate Mode transmission in order for the adapter's video connectors to pass video and audio Supports UHD 4K@60Hz (DisplayPort) & 4K@30Hz (HDMI) and HD 1080p@60Hz (DVI & VGA) resolutions. Note: Supports video output to one connected display at a time Supports high quality 7.1ch audio through DisplayPort or HDMI connection Supports Thunderbolt 3 technology and USB-C with DisplayPort Alternate mode (DisplayPort Alt) Compact and lightweight designed to quickly add an additional display convenient to use at home, office or travel makes this the perfect add-on to your workstation Bus-powered for extra portability, no need to take an external power adapter while on the go Convenient plug and play operation, no driver installation required Technical InformationConnectivity Technology: WiredDevice Supported: Notebook/Desktop PCCable Length: 9.65"Features: LightweightInterfaces/PortsHost Interface: USB Type CVGA: YesDisplayPort: YesHDMI: YesDVI: YesThunderbolt: YesPhysical CharacteristicsColor: BlackHeight: 2"Length: 9.7"Weight (Approximate): 1.92 ozMiscellaneousPackage Contents: USB-C to 4-in-1 Multiport Video Adapter - DVI/VGA/DP/HDMI User Reference Guide Environmentally Friendly: YesEnvironmental Certification: RoHSCountry of Origin: ChinaWarrantyLimited Warranty: 1 Year
Easily adds a 4K display to your Thunderbolt 3 and USB-C DisplayPort Alt enabled Ultrabook, laptop or desktop. Note: The USB-C source connection must support DisplayPort Alternate Mode transmission in order for the adapter's video connectors to pass video and audio

Supports UHD 4K@60Hz (DisplayPort) & 4K@30Hz (HDMI) and HD 1080p@60Hz (DVI & VGA) resolutions. Note: Supports video output to one connected display at a time

Supports high quality 7.1ch audio through DisplayPort or HDMI connection

Supports Thunderbolt 3 technology and USB-C with DisplayPort Alternate mode (DisplayPort Alt)

Compact and lightweight designed to quickly add an additional display convenient to use at home, office or travel makes this the perfect add-on to your workstation

Bus-powered for extra portability, no need to take an external power adapter while on the go

Convenient plug and play operation, no driver installation required

Chipset:
VL100+PS171+PS8348B+IT6516+IT6561
Supports DisplayPort 1.2, 1.62 Gbps, 2.7 Gbps, 5.4 Gbps link rates
Resolution:
DisplayPort: Up to 3840x216060Hz
HDMI: Up to 3840x216030Hz
DVI: Up to 1920x108060Hz
VGA: Up to 1920x108060Hz
Note: Supports one connected display at a time
Product:
Embedded USB Cable Length: 5.9"

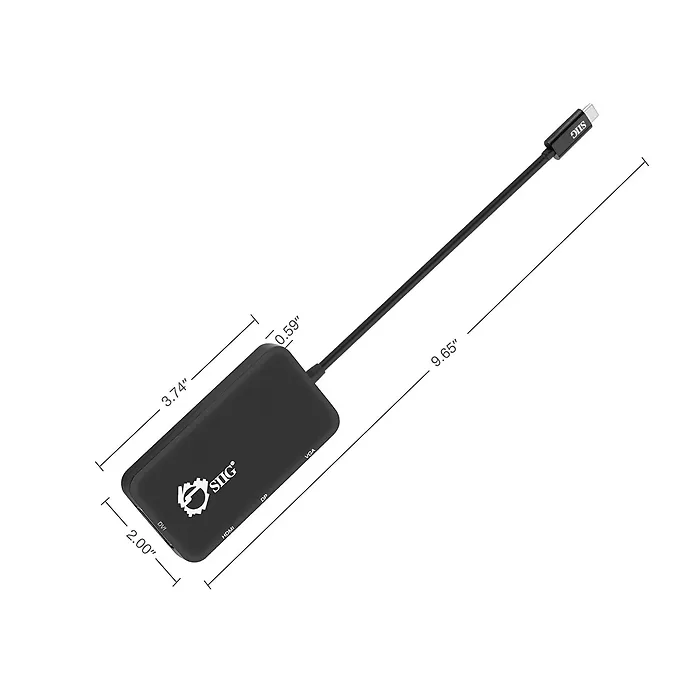

Total length: 9.65"
Color: Black
Material: Plastic
Connectors:
1x 24-pin USB-C, Male, Input
1x 20-pin DisplayPort, Female, Output
1x 19-pin HDMI, Female, Output
1x 25-pin DVI-D, Female, Output
1x 15-pin D-Sub VGA, Female, Output
Environmental conditions:
