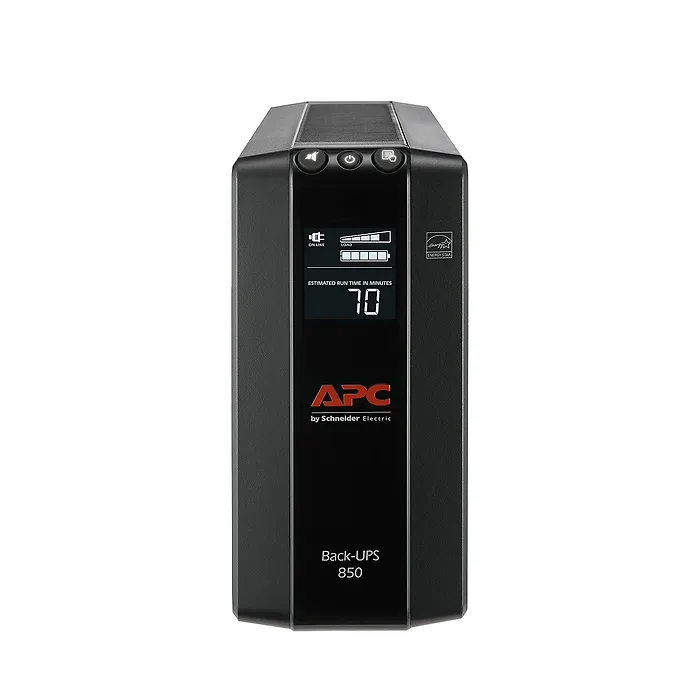

APC by Schneider Electric Back UPS Pro BX850M, Compact Tower, 850VA, AVR, LCD, 120V
Output
Output power capacity:510Watts / 850VA
Max Configurable Power (Watts):510Watts / 850VA
Nominal Output Voltage:120V
Output Frequency (sync to mains):60 Hz
Topology:Line Interactive
Waveform type:Stepped approximation to a sinewave
Maximum Output Current:15
Output Connections:(4) NEMA 5-15R (Battery Backup)
(4) NEMA 5-15R (selector_surgetitle)
Transfer Time:8ms typical : 10 ms maximum
Input
Nominal Input Voltage:120V
Input frequency:60 Hz +/- 3 Hz
Input Connections:NEMA 5-15P
Cord Length:6ft ( 1.83meters )
Input voltage range for main operations:88 - 139V
Number of Power Cords:1
Maximum Input Current:12.0A
Batteries and Runtime
Battery type:Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules:1
Typical recharge time:12hour(s)
Expected Battery Life (years):3 - 5
RBC Quantity:1
Extended Run Options:APC-Back-UPS-Pro-BX850M-Compact-Tower-850VA-AVR-LCD-120V
Runtime:View Runtime Graph
View Runtime Chart
Efficiency:View Efficiency Graph
Communications and Management
Interface Port(s):USB
Control panel:Multi-function LCD status and control console
Audible Alarm:Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating:1103Joules
Data Line Protection:Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector), Coaxial cable for CATV/SATV/modem/Audio-Video (coax connector)
Filtering:Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: instantaneous
Physical
Color:Black
Master Carton Units:2.0
SCC Codes:1073130433179 4
Environmental
Operating Temperature:32 - 104 oF ( 0 - 40 oC )
Operating Relative Humidity:0 - 95 %
Operating Elevation:0-10000ft ( 0-3000meters )
Storage Temperature:-15 - 45 oC
Storage Relative Humidity:0 - 95 %
Storage Elevation:0-50000ft ( 0-15000meters )
Audible noise at 1 meter from surface of unit:45.0dBA
Online thermal dissipation:48.5BTU/hr
Conformance
Approvals:California (CEC) Battery Charger, ENERGY STAR V1.0 (USA), FCC Part 15 Class B, UL 1778
Equipment protection policy:Lifetime : 250000
Sustainable Offer Status
RoHS:Compliant
REACH:REACH: Contains No SVHCs
Item Dimension (L inchxW inchxH inch)
8 x 13 x 4 Weight
15.10lb Warranty Information
3 years repair or replace
APC by Schneider Electric Back UPS Pro BX850M, Compact Tower, 850VA, AVR, LCD, 120V - Tower - 12 Hour Recharge - 2 Minute Stand-by - 120 V AC Input - 120 V AC Output - 8 x NEMA 5-15R
