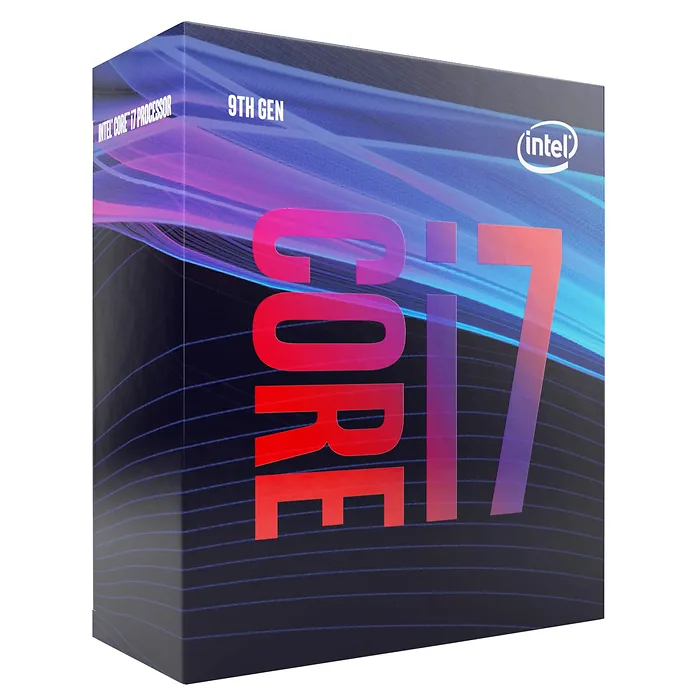

UP TO 4.7GHZ FC-LGA14A MM 999J2R
Essentials
Product Collection
9th Generation Intel Core i7 Processors
Code Name
Products formerly Coffee Lake
Vertical Segment
Desktop
Processor Number
i7-9700
Lithography
14 nm
Use Conditions
PC/Client/Tablet Performance
Number of Cores
8
Number of Threads
8
Processor Base Frequency
3.00 GHz
Max Turbo Frequency
4.70 GHz
Cache
12 MB SmartCache
Bus Speed
8 GT/s DMI3
TDP
65 W Supplemental Information
Embedded Options Available
No Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
DDR4-2666
Max Number of Memory Channels
2
Max Memory Bandwidth
41.6 GB/s
ECC Memory Supported
No Processor Graphics
Processor Graphics
Intel UHD Graphics 630
Graphics Base Frequency
350 MHz
Graphics Max Dynamic Frequency
1.20 GHz
Graphics Video Max Memory
64 GB
4K Support
Yes, at 60Hz
Max Resolution (HDMI 1.4)
4096x2304 at 24Hz
Max Resolution (DP)
4096x2304 at 60Hz
Max Resolution (eDP - Integrated Flat Panel)
4096x2304 at 60Hz
DirectX Support
12
OpenGL Support
4.5
Intel Quick Sync Video
Yes
Intel InTru 3D Technology
Yes
Intel Clear Video HD Technology
Yes
Intel Clear Video Technology
Yes
Number of Displays Supported
3
Device ID
0x3E98 Expansion Options
Scalability
1S Only
PCI Express Revision
3.0
PCI Express Configurations
Up to 1x16, 2x8, 1x8+2x4
Max Number of PCI Express Lanes
16 Package Specifications
Sockets Supported
FCLGA1151
Max CPU Configuration
1
Thermal Solution Specification
PCG 2015C (65W)
TJUNCTION
100^oC
Package Size
37.5mm x 37.5mm Advanced Technologies
Intel Optane Memory Supported
Yes
Intel Turbo Boost Technology
2.0
Intel vPro Platform Eligibility
Yes
Intel Hyper-Threading Technology
No
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel TSX-NI
Yes
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Intel Identity Protection Technology
Yes
Intel Stable Image Platform Program (SIPP)
Yes Security and Reliability
Intel AES New Instructions
Yes
Secure Key
Yes
Intel Software Guard Extensions (Intel SGX)
Yes with Intel ME
Intel Memory Protection Extensions (Intel MPX)
Yes
Intel OS Guard
Yes
Intel Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes Item Dimension (L"xW"xH")
5 x 3 x 4

Weight
1 lb

Warranty Information
3-years limited
