DISC PROD SPCL SOURCING SEE NOTES

Essentials
Product Collection: 8th Generation Intel Core i5 Processors
Code Name: Products formerly Coffee Lake
Vertical Segment: Desktop

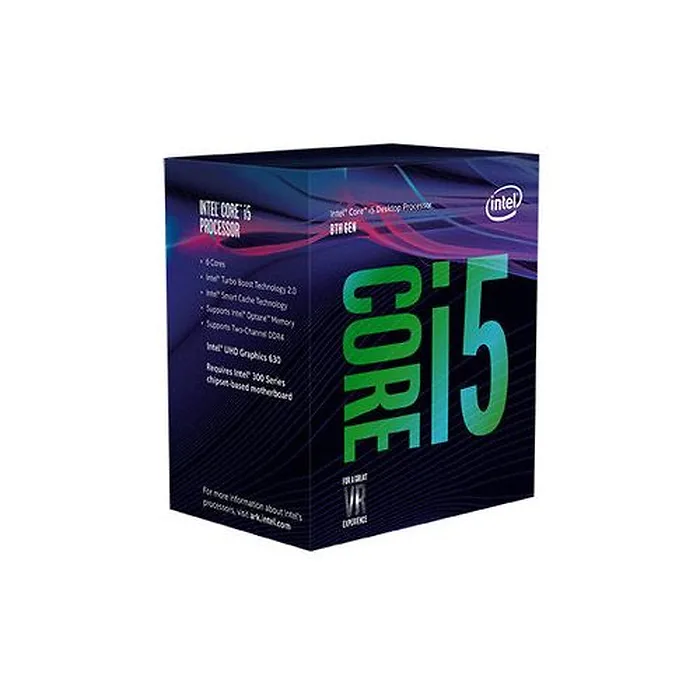

Processor Number: i5-8400
Lithography: 14 nm Performance
Number of Cores: 6
Number of Threads: 6
Processor Base Frequency: 2.80 GHz
Max Turbo Frequency: 4.00 GHz
Cache: 9 MB
Bus Speed: 8 GT/s DMI3
TDP: 65 W Supplemental Information
Embedded Options Available: No
Conflict Free: Yes Memory Specifications
Max Memory Size (dependent on memory type): 64 GB
Memory Types: DDR4-2666
Max Number of Memory Channels: 2
ECC Memory Supported: No Graphics Specifications
Processor Graphics: Intel UHD Graphics 630
Graphics Base Frequency: 350 MHz
Graphics Max Dynamic Frequency: 1.05 GHz
Graphics Video Max Memory: 64 GB
Execution Units: 23
4K Support: Yes, at 60Hz
Max Resolution (HDMI 1.4): 4096x2304 at 24Hz
Max Resolution (DP): 4096x2304 at 60Hz
Max Resolution (eDP - Integrated Flat Panel): 4096x2304 at 60Hz
DirectX Support: 12
OpenGL Support: 4.5
Intel Quick Sync Video: Yes
Intel InTru 3D Technology: Yes
Intel Clear Video HD Technology: Yes
Intel Clear Video Technology: Yes
Number of Displays Supported: 3
Device ID: 0x3E92 Expansion Options
Scalability: 1S Only
PCI Express Revision: 3.0
PCI Express Configurations: Up to 1x16 or 2x8 or 1x8+2x4
Max Number of PCI Express Lanes: 16 Package Specifications
Sockets Supported: FCLGA1151
Max CPU Configuration: 1
Thermal Solution Specification: PCG 2015C (65W)
TJUNCTION: 100oC
Package Size: 37.5mm x 37.5mm
Low Halogen Options Available: See MDDS Advanced Technologies
Intel Optane Memory Supported: Yes
Intel Turbo Boost Technology: 2.0
Intel vPro Technology: No
Intel Hyper-Threading Technology: No
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel TSX-NI: No
Intel 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: SSE4.1/4.2, AVX2
Idle States: Yes
Enhanced Intel SpeedStep Technology: Yes
Thermal Monitoring Technologies: Yes
Intel Identity Protection Technology: Yes
Intel Stable Image Platform Program (SIPP): No Security and Reliability
Intel AES New Instructions: Yes
Secure Key: Yes
Intel Software Guard Extensions (Intel SGX): Yes
Intel Memory Protection Extensions (Intel MPX): Yes
Intel OS Guard: Yes
Intel Trusted Execution Technology: No
Execute Disable Bit: Yes
Intel Boot Guard: Yes Item Dimension (L"xW"xH")
5 x 3 x 4

Weight
1 lb

Warranty Information
3 Years Limited
