All-In-One PTZ 1080P Full HD 10X/20X/30X HDMI/SDI/USB 3.0/IP/NDI|HX/POE Live Streaming Camera 30x

MFG No: BG-VPTZN-30HSU3
SKU No: RX9AJ05E2E
MFG. Name: BZB Gear
Available: 1
Condition: New Open Box

$1880.90

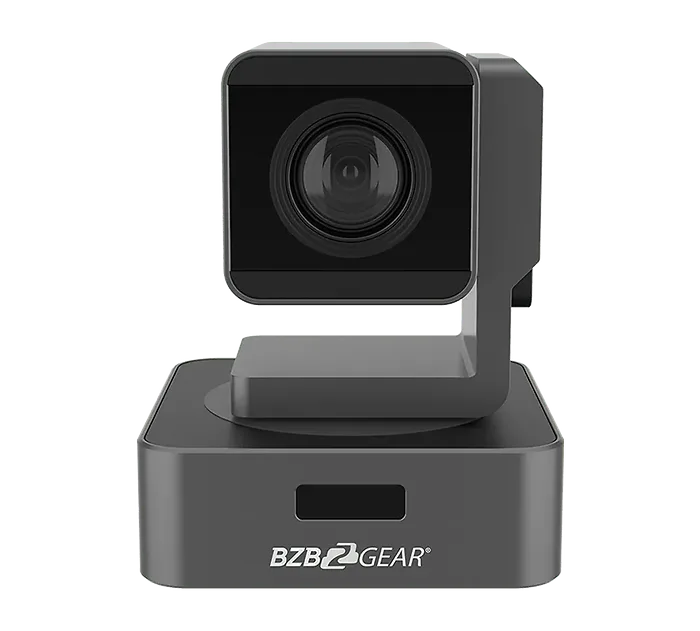

The BG-VPTZN-HSU3 is a compact 1080p HD PTZ camera. Designed with a compact footprint to unobtrusively blend into offices and classrooms, this performer is equipped with simultaneous HDMI, 3G-SDI, USB 3.0, and IP streaming outputs.

Connectivity and Features

The BG-VPTZN-HSU3 camera can capture images at resolutions up to 1080p@60Hz. With simultaneous HDMI, 3G-SDI, USB 3.0, and IP streaming outputs this camera can integrate seamlessly with nearly any workflow. Available with 10X, 20X, or 30X optical zoom lenses, the BG-VPTZN-HSU3 produces detailed close-ups in even large venues. The 3.5mm audio input jack allows the BG-VPTZN-HSU3 to embed audio directly into the video stream. The camera supports H.264 and H.265 video compression formats, and can broadcast in ONVIF, RTSP, and RTMP IP streaming protocols.

What is NDIr

Network Device Interface (NDI) is a high performance AV over IP standard that allows anyone to use real time, ultra low latency video on existing IP video networks. The NDI open protocol enables professionals to share video through a local area network (LAN) with video-compatible devices.

What is NDI|HX2r

NDI|HX2 is an updated version of NDI|HX1. NDI|HX2 also compresses the bandwidth, but is more efficient than NDI|HX1. With compressed bandwidth, users can have more devices on their LAN without running into latency issues. NDI|HX2 provides good quality output, low bandwidth and medium latency. The main difference compared to NDI|HX1 is that HX2 is truly a native NDI stream - all the way from the source device to the destination. This means it is a "cleaner" implementation than HX1 and can potentially be more reliable, provide lower latency and give a more flexible connection which shares all the usual features of NDI.

Control

This camera can be controlled using RS-232, RS-485, LAN, or IR remote control. There are various protocols supported including IP VISCA, ONVIF, and PELCO-P/D. There are 255 available preset positions that can be stored internally, with nine of those presets being available via IR remote control.
Camera Specs
Image Sensor1/2.7″ Exmor CMOS (10X), 1/2.8″ Exmor CMOS (20X), 1/2.8″ Exmor CMOS (30X)
Frame Rate1080p@60/ 59.94 / 50 /30 / 29.97 /25
1080i@60/59.94 / 50 / 30 / 29.97 / 25
720p@60/50/ 30 / 25, 480i@60, 576i@50
ZoomOptical - 10X/20X/30X
F-number1.6(W)-3.5(T) (10X), 1.6(W)-3.5(T) (20X), 1.3(W)-4.8(T) (30X)
Focusf=5.1mm~51mm (10X), f=4.7mm~94.0mm (20X), f=5.2mm~148.4mm (30X)
Effective Pixels2.70 Megapixel (10X), 2.38 Megapixel (20X), 2.70 Megapixel (30X)
View Angle (H)72° (10X), 65° (20X), 65.4° (30X)
Min Illumination0.5lux (F 1.8, AGG ON)
Shutter Speed1 to 1/10000s
Image AdjustmentVertical Flip & Mirror Supported
Input/Output Interface
Video OutputHDMI, 3G-SDI, USB 3.0, RJ45 Network (10/100M Adaptive Ethernet ports)
Audio Input1-ch 3.5mm audio interface, Line In
Communication interface1X RS232 IN, 1X RS232 Out, 1X RJ45, RS485
Power ConnectionDC IN 12V, Power over Ethernet
Mechanical
Pan/Tilt Rotation±178°, Tilt Rotation Angle -30°~ +90°
Pan 90°/s; Tilt: 90°/s
PresetsMax 255 Presets ( Remote 9 Presets)
Network ProtocolVISCA, PELCO P/D, ONVIF Protocol
IPC Video Features
Video standardH.265/H.264/MJPEG
Video StreamMain stream, Sub stream
Main stream resolution1920x1080, 1280x720
Sub stream resolution720x480, 320x240
Bit Rate128K, 256K, 384K, 512K, 768K, 1024K, 1536K, 2048K, 3072K, 4096K, 5120K, 6144K, 8192K
Bit Rate TypeVariable rate, Fixed rate
Maximum Frame60fps
Audio encode standardG.711, G.722, G.722.1, G.728, G.722.1C AAC
Audio stream rate96K, 128K, 256K
Supported protocolsTCP/IP, RTSP, RTMP
Generic
Dimensions (L*W*H)4.7in x 4.7in x 5.7in / 120mm x 120mm x 145mm
Gross Weight3.5 lbs [1.6kg]
Operating Temperature-10°C ~ 50°C
Max Consumption12W DC12V@1A
