The UTI1 Universal Telephone Interface provides single-zone paging for one-way applications such as self-amplified speaker systems. It is compatible with all standard analog port types and includes two audio outputs with level controls each of which can provide audio for 150 Bogen self-amplified speakers. A 24V DC @ 1A internal power supply is available to power external equipment. - Single-zone paging - Telephone interfaces: loop start trunk ground start trunk station access (analog ring-up) page port contact closure activation page port voice activation - Simple 2-switch interface setup - Override paging (using loop start trunk or page port contact closure activation) - Programmable activation of AUX contacts - C-form contact - Two audio outputs (Page Only and Page with Background Music) both with level controls - Each output can provide audio drive for 150 selfamplified speakers - High impedance transformer-isolated background music input with volume control - Variable music mute - Night Ringer (contact closure activation) - Tone Trigger (tone and duration selectable closureactivated) - Tone burst (2 to 7 sec) chime and slow whoop tone selections - Pre-Announce/Confirmation Tone - Adjustable output limiter with threshold control and active indicator - Programmable timers control page duration (station and trunk) - DTMF programming - DTMF Block to help suppress DTMF tones over paging system - Non-volatile memory for setup data (no backup battery required) - Setup Tone to assist in volume setting - Pluggable terminal strips - Microcontroller-based operation - Wall mounting flanges - Rack panel kit with security cover available (RPKUTI1 sold separately) - Two-Year Warranty
- Bogen single-zone paging universal telephone interface
- Compatible with all standard analog port types
-Includes 2 audio outputs with level controls, each of which can provide audio for 150 Bogen self-amplified speakers
- Telephone interfaces: loop start trunk, ground start trunk, station access (analog ring-up), page port contact closure activation, page port voice activation
- Simple 2-switch interface setup
- Programmable activation of AUX contacts
- C-form contact
- High-impedance transformer isolated background music inputs with volume control
- Override paging (using loop start trunk or page port contact closure activation) with zone group
- Night ringer (contact closure activation)
- Tone triggers (tone and duration selectable, closure activated) with individual zone groups
- Tone burst (2 to 7 seconds), chime or slow whoop
- Non-volatile memory for setup data (nobackup battery required)
- Setup Tone to assistin volume setting
- Pluggable terminal strips
- Microcontroller-based operation
- DTMF programming
- DTMF Block to help suppress DTMF tones over paging system
- Programmable timers control page duration (station and trunk)

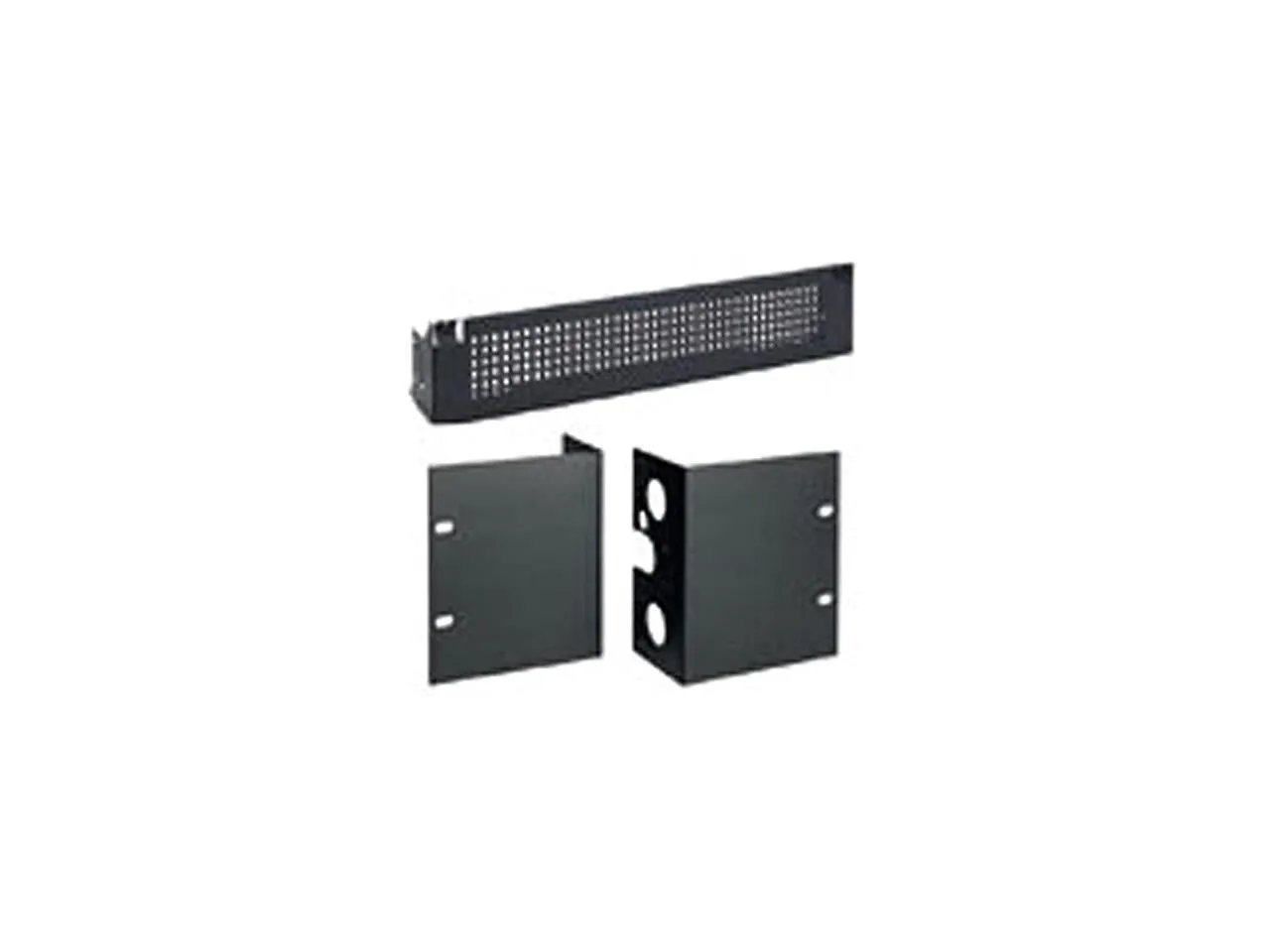

- Wall- or Rack-mountable
- 2 Year manufacturer's warranty

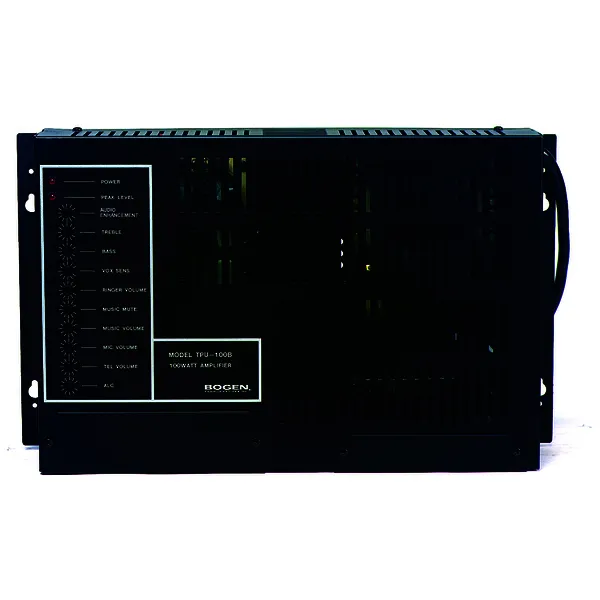

-(+20) Bogen power units
