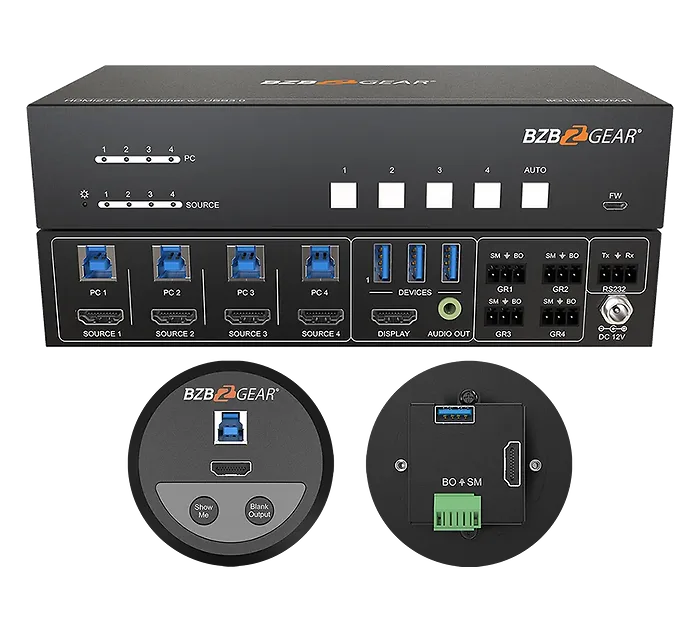

This presentation switcher kit is a fantastic option for businesses looking to easily switch between and control multiple computers. With the BG-UHD-KVM41-KIT, you can control up to four computers with one keyboard, one mouse, and one monitor. The included BG-SC-GRHU table grommets allow for PC control and connection from a distance. This system, powered by the 4X1 HDMI 2.0 KVM switch, supports video resolutions up to 4Kx2K@60Hz (4:4:4). This device is an ideal solution for anyone looking to run advanced presentations in conference rooms with multiple presenters, as multiple users will be able to share their screens at once. The table grommets allow users to plug in their own devices easily with no fuss, allowing them to select themselves as the video source and to blank out their screen at the push of a button. Users will love the flexibility and utility that the BG-UHD-KVM41-KIT provides thanks to its comprehensive control and connectivity. This presentation switcher kit helps organizations move forward in a world of ever-evolving digital experiences.

Connectivity & Control

The BG-UHD-KVM41-KIT’s 4X1 HDMI 2.0 KVM switch features four HDMI video inputs and one HDMI output. The four type-B USB 3.0 host ports and three type-A ports provide KVM management and peripheral connections. The system is compatible with Windows, Linux, and MacOS computers for maximum flexibility. A 3.5 mm stereo audio output is included for audio de-embedding. The system can be controlled via front panel buttons and RS232 commands. There are four ports that connect the BG-SC-GRHU table grommets for source selection. The BG-SC-GRHU table grommets each feature an HDMI input and a Type-B USB 3.0 connection. There are also controls for source selection and users are given the option to turn their video off to show a black screen instead. The grommets support resolutions up to 4Kx2K@60Hz.

Video Input
Input	(4) SOURCE 1~4
Input Connector	(4) Female type-A HDMI
HDMI Input Resolution	Up to 4Kx2K@60Hz 4:4:4, HDR10, Dolby Vision
HDMI Standard	2.0
HDCP Version	2.2
Video Output
Output	(1) DISPLAY
Output Connector	(1) Female type-A HDMI
HDMI Output Resolution	Up to 4Kx2K@60Hz 4:4:4, HDR10, Dolby Vision
HDMI Standard	2.0
HDCP Version	2.2
Audio
Output	(1) AUDIO OUT
Output Connector	(1) 3.5mm mini stereo audio jack
Audio Format	PCM 2CH
Frequency Response	20Hz to 20KHz, ?1dB
Max Output Level	2.0Vrms ? 0.5dB. 2V = 16dB headroom above -10dBV (316 mV) nominal consumer line level signal.
THD+N	< 0.05%, 20Hz - 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level).
SNR	> 80dB, 20Hz - 20KHz bandwidth.
Crosstalk Isolation	< -80 dB, 10 kHz sine at 0dBFS level (or max level before clipping).
L-R Level Deviation	< 0.05 dB, 1 kHz sine at 0dBFS level (or max level before clipping).
Output Load Capability	1Kohm and higher (supports 10x paralleled 10k ohm loads).
Noise Level	-80dB
Control
Control	(1) FW, (4) PC 1~4, (3) DEVICES 1~3, (4) GR 1~4, (1) RS232
Control Connector	(1) Micro-USB, (4) Type-B USB, (3) Type-A USB, (5) 3-pin Terminal Blocks
General
Bandwidth	18Gbps
Operation Temperature	14°F ~ +131°F / -10°C ~ +55°C
Storage Temperature	-25°F ~ +158°F / -25°C ~ +70°C
Relative Humility	10%-90%
Type-A USB Power Supply	1A
System Power Supply	Input: 100V~240V AC; Output: 12V DC 2A
System Power Consumption	14W(Max)
Dimension (W*H*D)	7.9" x 1.6" x 3.9" [200mm x 40mm x 100mm]
Net Weight	1.5lbs [685g]



BG-SC-GRHU Table Grommet

Video Input
Input	(1) HDMI
Input Connector	(1) Female type-A HDMI
Video Output
Output	(1) HDMI
Output Connector	(1) Female type-A HDMI
Control
Control Connector	(1) Type-B USB, (1) Type-A USB, (1) 3-pin Terminal Block
General
Resolution Range	Up to 4Kx2K@60Hz 4:4:4, HDR10, Dolby Vision
Operation Temperature	14-25°F ~ +131-25°F / -10°C ~ +55°C
Storage Temperature	-25-25°F ~ +158-25°F / -25°C ~ +70°C
Relative Humility	10%-90%
Dimension (W*H*D)	3.0" x 1.2" x 3.0" [76mm x 29.6mm x 76mm]
Net Weight (g)	0.23lbs [105g]
