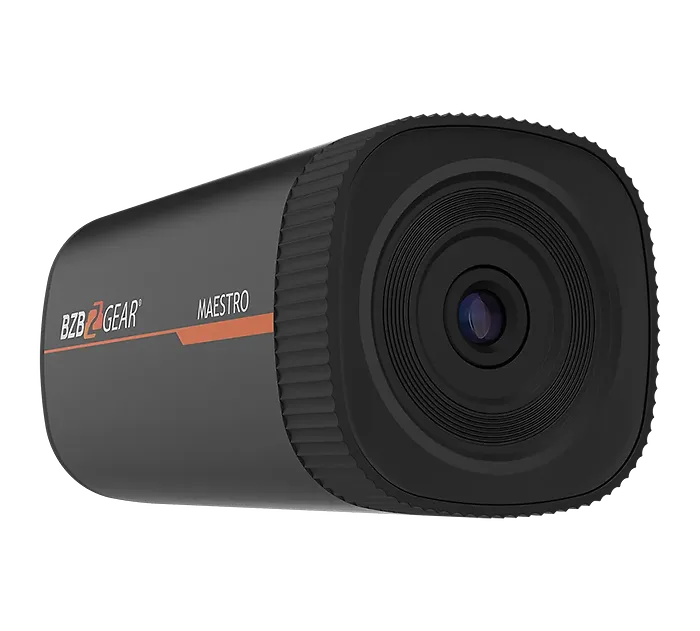

The BG-MAESTRO is a compact ePTZ Auto-Tracking camera that delivers extremely accurate tracking throughout its coverage area. Designed to be easy to configure, the Maestro requires no additional software to set the auto-tracking parameters. All setup can be accomplished quickly and easily with the web browser interface. Power over ethernet (PoE) technology further simplifies installation, requiring only one cable for the camera to function. With electronic pan, tilt, and zoom (ePTZ) capabilities, tracking can be accomplished while maintaining a very compact form factor.

Connectivity & Performance

BG-MAESTRO can simultaneously output USB 3.0, 3G-SDI, and IP streaming in resolutions up to 1080p@30Hz. To achieve this level of quality, it utilizes a 1/2.8r high quality 4K CMOS sensor. The camera uses 3x digital zoom and ePTZ controls to automatically track subjects in its field of view. It can accomplish this task between distances of 15 ft and 50 ft from the camera. The camera has low noise and high SNR as well. With 5 simultaneous output streams the Maestro allows multiple angles to be broadcast at once. This camera is ideally suited for educational purposes, lectures, fitness instructors, and hobbyists. The Maestro has smooth tracking that is not affected by minor movements of subjects and it is also resistant to acquisition of interfering subjects. This camera is equipped with a 3.5mm stereo input for the connection of an external microphone. It also supports several protocols such as ONVIF, RTSP, and RTMP which enable operators to stream video directly from the camera to streaming and video service platforms like YouTube, Facebook, and Twitch. H.264 and H.265 video compression options are also available. The intuitive web browser interface enables operators to set tracking parameters to optimize the camerars auto tracking abilities for particular situations and environments. The camera can also be mounted to a ceiling, wall, or tripod for additional flexibility in installation.

Control

The intuitive web browser interface enables operators to set tracking parameters to optimize the camerars auto tracking abilities for particular situations and environments. The camera can also be mounted to a ceiling, wall, or tripod for additional flexibility in installation.

Camera/ Lens Parameters
Image Sensor	1/2.8" High Quality 4K CMOS Sensor
Effective pixels	8.28 Megapixel, 16:9
Video Format	SDI /HDMI output: 1080p@30Hz/25Hz; 720p@60Hz/50Hz/30Hz/25Hz; U3 output: 1920x1080p@30Hz /25Hz; 1280x720p@60Hz /50Hz /30Hz /25Hz; 960x540p@30Hz; 800x600p@30Hz; 640x360p@30Hz; 640x480p@30Hz; 352x288p@30Hz; USB3.0 can be compatible with USB 2.0 output
View Angle	57.2° (D) /47° (H) /36° (V)
Focus	f=7.23mm
Aperture	F2.4+ 5%
Digital Zoom	3X
Minimum Illumination	0.5Lux (F1.8, AGC ON)
DNR	2D & 3D DNR
White Balance	Auto / Manual/ One Push/ Specified color temperature (2400K-7100K, step length is 100)
Focus	Manual
Exposure	Fixed
BLC	ON/ OFF
DNR	>50dB
Input/Output Interface
Video Interfaces	1xSDI / HDMI interface 1xUSB interface 1xLAN interface: 10M/100M adaptive Ethernet port (support POE)
Video Compression Format	H.264, H.265, MJPEG, YUY2, NV12
Audio Input Interface	Double track 3.5mm linear Input
Audio Compression Format	AAC, MP3, G.711A
Network protocol	RTSP, RTMP, ONVIF, GB/T28181
Control Interface	RS232, RS485, LAN
Communication Protocol	VISCA, Pelco-D, Pelco-P, support baud rate 115200/38400/9600/4800/2400; Support VISCA Control Protocols
Power Interface	HEC3800 power socket (DC12V)
Other Parameters
Input Voltage	Power Adapter: 12V
	POE Supply: 48V
Input Current	Power Adapter: 0.42A (max)
	POE Supply: 0.104A (max)
Power Consumption	5W (max)
Stored Temperature	-10°C ~ +60°C
Stored Humidity	20% ~ 95%
Working Temperature	-10°C ~ +50°C
Working Humidity	20% ~ 80%
Dimension (W x H x D)	149 x 76 x 76mm
Weight	Approx. 1.17 lbs [0.53kg]
Application	Indoor
