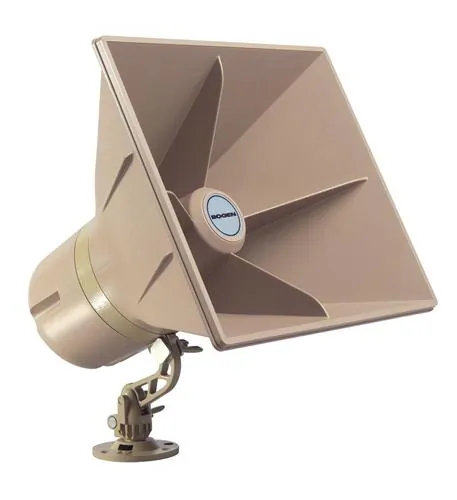

The Bogen KFLDS30T is a wide dispersion high intelligibility reentrant type loudspeaker designed for applications where wide angle projection and select audio directivity is a necessity. The flare-shaped horn can be rotated to project sound in either the horizontal or vertical plane.The speaker s all-purpose tilt and swivel base simplifies installation and makes such positioning possible. Its sturdy weatherproof polycarbonate and aluminum construction is ideal for both indoor and outdoor use. Screw terminals make installation fast and easy. Plastic cover protects connectors and 70V/25V impedance selector switch and provides strain relief for the audio line. 30 watts max @ 70 volt or 15 watts max @ 25 volt Weatherproof polycarbonate and aluminum construction Driver enclosed in waterproof housing 170 dispersion with rotatable horn flare All-purpose mounting bracket shall provide precise positioning in the vertical and horizontal planes with a single adjustment Seven-position weather-sealed switch matches either a 70V or 25V constant-voltage line Tap settings for 70V: 30 15 7.5 3.7 1.8; for 25V: 15 7.5 3.7 1.8 0.9 0.5 0.25 Self-aligning field-replaceable diaphragm High intelligibility and efficiency Screw terminals for easy audio line connection Plastic cover protects connectors and impedance selector switch and provides strain relief for the audio line Banding slots on bracket permit mounting on beams or pillars and use of a beam clamp Textured mocha enamel finish matching polycarbonate horn flare.
- 30 watts max. @ 70 volts or 15 watts max @ 25 volts
- Weatherproof polycarbonate and aluminum construction
- Driver enclosed in weatherproof housing
- 70 x 95 dispersion with rotatable horn flare
- All-purpose mounting bracket provides precise positioning in the vertical and horizontal planes with a single adjustment
- Seven-position, weather-sealed tap selector switch
- Rotary switch-selected power taps
- Tap settings for 70V: 30, 15, 7.5, 3.7, 1.8 watts; for 25V: 15, 7.5, 3.7, 1.8, 0.9, 0.5, 0.25 watts
- Self-aligning, field-replaceable diaphram
- High-intelligibility and efficiency
- Screw terminals for easy audio line connection
- Plastic cover protects connectors and tap selector switch, also provides strain relief for the audio line
- Textured mocha enamel finish on aluminum, matching polycarbonate horn flare
- Limited lifetime warranty
- Mountable to I-beam flange using Bogen's BC1 Beam Clamp (sold separately)
- Mountable to electrical box using Bogen's HSES10 mounting strap (sold separately)
- Terminal cover (TCSPT1) allows connection of conduit fittings to horn speakers (sold separately)
