$1440.90

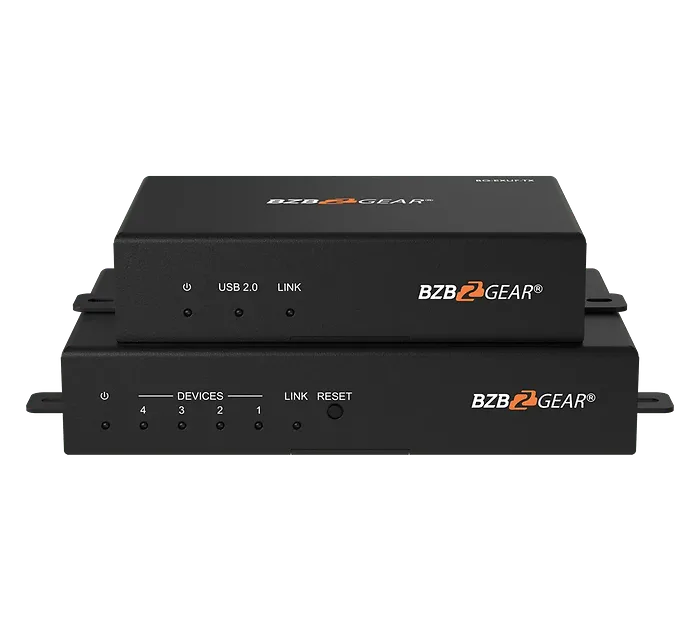

The BZBGEAR BG-EXUF is a 4-port fiber optic USB 3.1/2.0/1.1 extender that extends USB 3.1 up to 328ft (100m) and USB 2.0/1.1 up to 6.2mi (10Km) over single-mode or multi-mode fiber optic cabling. Designed with a four-port hub to extend up to four USB devices without the need for an additional device. Each port supports data transfer speeds up to 5Gbps (USB 3.1).
Installation and use of the BG-EXUF is effortless with four mounting holes built into its sturdy metal chassis and no requirements for drivers. The advanced optical fiber transmission technology eliminates electromagnetic interference.
| Distance | |
| USB 3.1 Gen1 | Single-mode fiber or OM3 multi-mode fiber: Non-real-time transmission: 300m Real-time transmission: 100m |
| USB 2.0/1.1 | Single-mode fiber: Non-real-time transmission:10km Real-time transmission:6km OM3 multi-mode fiber: 500m |
| Data Rate | |
| USB 3.1 GEN1 | 5Gbps |
| USB 2.0 | 480Mbps |
| USB 1.1 | 12Mbps |
| Transmitter (BG-EXUF-TX) | |
| USB Interface | 1x USB 3.0 type-B male connector |
| Fiber Interface | 1x LC |
| Dimensions | 135mm x 75mm x 26mm |
| Installation | 4 mounting holes for fixing |
| Enclosure Material: | Metal |
| Power Supply | External DC 12V |
| Receiver (BG-EXUF-RX) | |
| USB Interface | 4x USB 3.0 type-A female connector |
| Fiber Interface | 1x LC |
| Dimensions | 160mm x 85mm x 26mm |
| Installation | 4 mounting holes for fixing |
| Enclosure Material: | Metal |
| Power Supply | External DC 12V |
| Environment | |
| Operating Temperature | +50 to +140°F / -10 to +60°C |
| Storage Temperature | -49 to +185°F / -45 to +85°C |
| Operating Humidity | 20% to 80% relative humidity, non-condensing |
| Storage Humidity | 10% to 80% relative humidity |
4-Port USB3.1/2.0/1.1 KVM SuperSpeed Fiber Extender up to 1000ft
