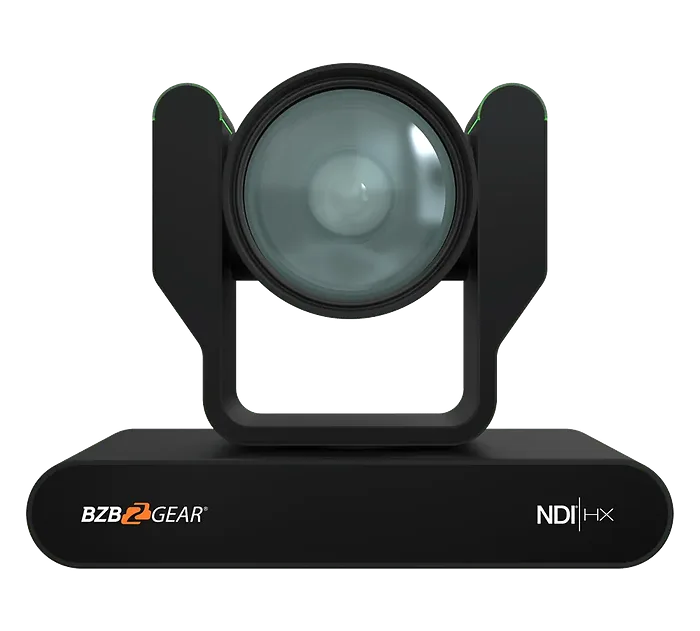

BG-ADAMO-4KND: The Next GenerationBZBGEAR is proud to announce the next generation of PTZ cameras: the BG-ADAMO-4KND. Brilliantly designed with exclusive features and a unique form factor, the BG-ADAMO is unrivaled in its class on the live stream broadcasting market.NDI|HX: Just the BeginningThe BG-ADAMO-4KND is loaded with features including the latest NDI|HX technology, a full interface of video connections, and immaculate 4K@60Hz resolution. Integrated with NDI|HX technology, distribute the stream to multiple devices on the network using nothing more than a simple Ethernet connection. The 12G-SDI connection enables long distance cable runs without compromising image quality. Compose shots ahead of time utilizing the up to 255 programable presets, with 10 conveniently accessible using the IR remote. Capable of storing 1 TB of video footage with the Micro SD Card writer, start recording on the fly when other connections are inaccessible.
The lens is designed with an advanced auto-focusing algorithm that promptly snaps into focus with dependable accuracy and stability. The 3D noise reduction technology combined with the low-noise CMOS sensor ensures impeccable image clarity. Choose between the 12x optical zoom lens with an 80.4
Parameters | ||
Optical zoom | 12X | 25X |
Focal length range | f=3.85 mm ~ 43.06 mm ?5% | f=7.1 mm ~ 171.95 mm ?5% |
View Angle | H: 7.59°(tele) ~ 80.4°(wide) V: 4.6°(tele) ~ 50.0°(wide) | H: 2.5°(tele) ~ 59.2°(wide) V: 1.4°(tele) ~ 34.6°(wide) |
AV | F1.8 ~ F3.56?5% | F1.61 ~ F5.19?5% |
Sensor | 1/2.5 inch SONY CMOS sensor | 1/1.8 inch SONY CMOS sensor |
Effective Pixels | 8.51 Megapixels 16:9 | |
Video Format | HDMI: 3840*2160p@60/50/30/25/59.94/29.97Hz; 1080p@60/50/30/25/59.94/29.97Hz; 1080i@60/50,30/59.94Hz; 720p@60/50/59.94Hz; 12G-SDI: 3840*2160p@60/50/30/25/59.94/29.97Hz; 1080p@60/50/30/25/59.94/29.97Hz; 1080i@60/50/59.94Hz; 720p@60/50/59.94Hz; USB2.0: MJPG: 3840*2160 /1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240p@30Hz; H264: 3840*2160 /1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240p@30Hz; YUY2: 800*448 /720*480p@25; 640*360 /432*240p@30Hz NV12: 800*448p@25; 640*480 /640*360 /432*240p@30Hz USB3.0: YUY2: 1920*1080 /1280*720p@60/50/30/25Hz; 960*540 /800*600p@30Hz; 720*576p@50Hz; 720*480p@60Hz; 640*480p@30Hz; | |
Minimum Illumination | 0.05Lux (F1.8, AGC ON) | |
DNR | 3D DNR | |
White Balance | Auto / Manual / One Push / specified color temperature | |
Focus | Auto / Manual / One key focus | |
Exposure mode | Auto, Manual / Shutter Priority / Aperture Priority / Brightness Priority | |
Aperture parameters | F1.8 ~ F11, CLOSE | |
Shutter speed | 1/25 ~ 1/10000 | |
BLC | Off/On | |
Dynamic range | OFF / Dynamic Level Adjustment | |
Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | |
SNR | r50dB | |
Interface Features | ||
Interfaces | HDMI, 12G-SDI, NDI/LAN (support POE), USB2.0, A-IN, USB3.0, Micro SD, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), Dial switch, DC12V, Power Switch | |
Video Compression | LAN: H.264, H.265 USB 2.0: MJPG, H264, H265, YUY2, NV12 USB 3.0: YUY2 | |
Audio-in Interface | Double track 3.5mm linear Input | |
Audio out | HDMI, SDI, NDI/LAN | |
Audio Compression | AAC, G.711A | |
Sampling frequency | 32000, 44100, 48000 | |
NDI/LAN | 10M/100M/1000M adaptive Ethernet port, support POE and audio/video output | |
Network Protocol | RTSP, RTMP, ONVIF, SRT, GB/T28181; VISCA Control Protocols | |
Control Interface | RS232-IN, RS232-OUT, RS422 compatible with RS485 | |
Serial Protocol | VISCA/Pelco-D/Pelco-P; Baud rare:115200/38400/9600/4800/2400 | |
USB Communication Protocol | UVC (video) | |
Power Interface | HEC3800 (DC12V) | |
Power Adapter | In: AC110V-AC220V; Out: DC12V/2.5A | |
Input Voltage | DC12V?10% | |
Input Current | <1.5A | |
Power Consumption | <12W | |
PTZ Parameters | ||
Pan Rotation | -170° ~ +170° | |
Tilt Rotation | -30° ~ +90° | |
Pan Control Speed | 0.1°/s ~ 100°/s | |
Tilt Control Speed | 0.1°/s ~ 70°/s | |
Preset Speed | Pan: 78.8°/s, Tilt: 31.7°/s | |
Preset Number | 255 Presets (10 presets by remote control) |
4K UHD AUTO TRACKING HDMI 2.0/12G-SDI/USB 2.0/USB 3.0/POE/NDI|HX3 Live Streaming PTZ Camera with Tally Lights Black 12x
