Dynatron B11 80mm 2 Ball Bearing CPU Cooler
Product Description

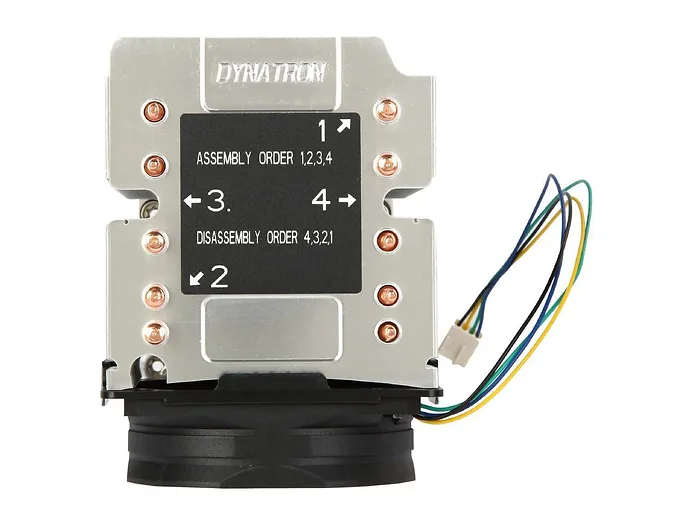

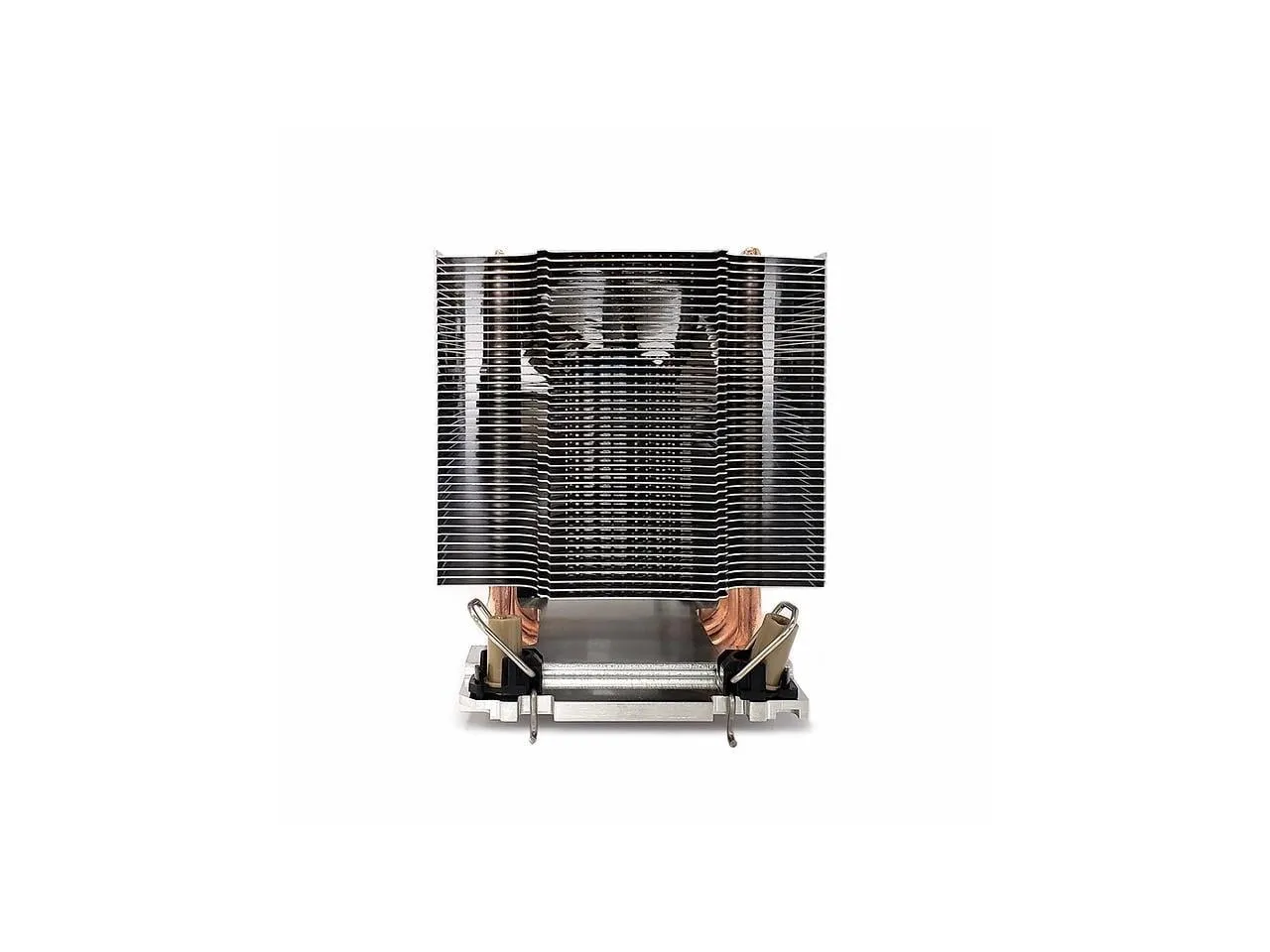

Intel Socket FCLGA3647 Narrow ILM 80x80x25mm PWM Fan, Aluminum heatsink with heatpipe embedded for 3U Server up to CPU power 205 Watts.


Features
MAX TDP: 205 Watts

FAN: 80x80x25mm PWM

SOCKET: FCLGA-3647

HEATSINK: Heatpipes Embedded

CPU Support
Intel
CPU Socket
FCLGA 3647
Solution
3U Server and Up
Material
Aluminum Heatsink with Heatpipe Embedded
Fan Dimension
80 x 80 x 25 mm
Speed
At Duty Cycle 20%: 1300 +/- 200 RPM
At Duty Cycle 50%: 2300 +/- 10% RPM
At Duty Cycle 100%: 4000 +/- 10% RPM
Rated Voltage
12V
Bearing
2 Ball Bearing
Power
At Duty Cycle 20%: 0.96 W
At Duty Cycle 50%: 1.44 W
At Duty Cycle 100%: 4.8 W
Air Flow
At Duty Cycle 20%: 12.5 CFM
At Duty Cycle 50%: 28.8 CFM
At Duty Cycle 100%: 50.0 CFM
Noise Level
At Duty Cycle 20%: 16 dBA
At Duty Cycle 50%: 30.2 dBA
At Duty Cycle 100%: 42.2 dBA
Air Pressure
At Duty Cycle 20%: 0.5 mm-H2O
At Duty Cycle 50%: 2.6 mm-H2O
At Duty Cycle 100%: 7.8 mm-H2O
Lead Wire Pin Out
Lead Wire Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)
Thermal Grease
Shin-Etsu 7762 Pre-Applied
Item Dimension (L inchxW inchxH inch)
7 x 5 x 6
Weight
2.00 lb
Warranty Information
1 Year
