Specifications

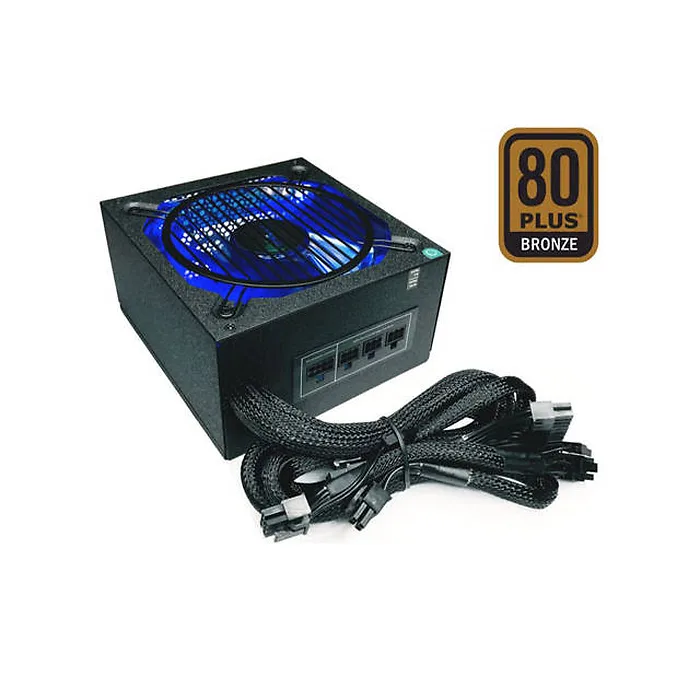

• Mfr Part Number: ATX-SN900W
• Features:
  • 900W Power with 13.5cm blue LED fan
  • 80+ Bronze certified
  • High stability with 5% tolerance of 5V, 3.3V & 12V output
  • Hybrid modular cable design
  • High quality components and housing
  • Each cable is removable
• Maximum Power: 900 W
• Input:
  • Voltage: 115 - 230 V
  • Frequency Range: 50 - 60 Hz
  • Current: 8A for 115VAC, 4A for 230VAC
• Type: ATX12V v2.3
• Fan: Forced air ventilation by 1 x 135mm blue LED fan
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 66A, -12V @ 0.3A, +5Vsb @ 2.5A
• Connectors: 1x 20/24pin Main Power Connector, 1x 4/8pin ATX12V & EPS Connector, 4x 6+2pin PCI-Express Connectors, 4x SATA Connectors, 4x Peripheral Connectors, 1x Floppy Connector
• Color: Black sandblasting coated case
• Dimensions (WxLxH): 5.9 x 6.2 x 3.4 inch / 150.0 x 158.0 x 86.0 mm
• Weight: 5.0 lbs
