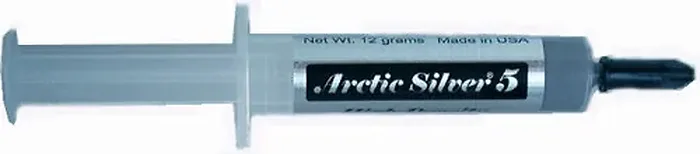

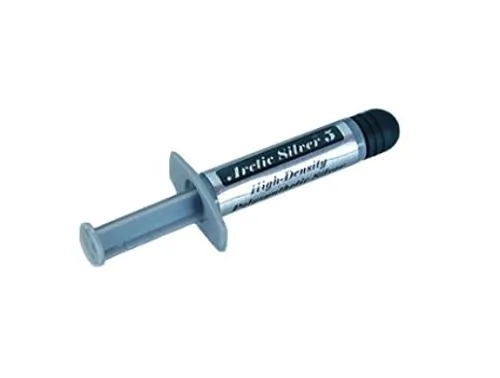

With its unique high-density filling of micronized silver and enhanced thermally conductive ceramic particles, Arctic silver 5 provides a new level of performance and stability. Available at Arctic silver resellers worldwide. Arctic silver 5 is the reference premium thermal compound. Arctic silver 5 is optimized for a wide range of bond lines between modern high-power CPUs and high performance heatsinks or water-cooling solutions.

Specifications

• Mfr Part Number: AS5-12G
• Features:
  • Contains 99.9% pure silver
  • High-Density(contains over 88% thermally conductive filler by weight)
  • Controlled Tripple-Phase Viscosity
  • Not Electrically Conductive and Absolute Stability (will not separate, run, migrate, or bleed)
• Thermal Conductance: >300,000W/m2 °C (0.001 inch layer)
• Thermal Resistance: <0.0045°C-in2/Watt (0.001 inch layer)
• Average Particle Size: <0.49 microns <0.000020 inch
• Extended Temperature Limits: Peak: -50°C to >180°C Long-Term: -50°C to 130°C
• Performance: 3 to 12 degrees centigrade lower CPU full load core temperatures than standard thermal compounds or thermal pads when measured with a calibrated thermal diode imbedded in the CPU core
