POWER INVERTER/CHARGER
Output
Nominal Output Voltage Supported: 120V
Frequency Compatibility: 60Hz
Output Receptacles: (2) 5-15R
Output: 750W
Continuous Output Capacity: 750W
Peak Output Capacity: 1500W
Output Voltage Regulation: LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%)
Output Frequency Regulation: 60Hz (+/-0.3 Hz)
Overload Protection: Includes 6A AC input breaker dedicated to the charging system and 8A output breaker for AC output loads Input
Nominal Input Voltage Supported: 120V AC
Recommended Electrical Service: DC INPUT: Requires 12V DC input source capable of delivering 72A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation). AC INPUT: 15A 120V AC recommended
Maximum Input Amps/Watts: DC INPUT: Full continuous load - 72A at 12V DC. AC INPUT: 8 amps at 120VAC with full inverter and charger load (4.2A max charger-only)
Input Connection Type: DC INPUT: Set of 2 DC bolt-down terminals. AC INPUT: NEMA 5-15P input plug
Voltage Compatibility: 120V AC
Voltage Compatibility: 12V DC Battery
Expandable Battery Runtime: Runtime is expandable with any number of user supplied wet, gel or SLA batteries
DC System Voltage: 12V DC
Battery Charge: 20A
Expandable Runtime: Yes User Interface, Alerts and Controls
Front Panel LEDs: Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.
Switches: 3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterrupted Surge / Noise Suppression
AC Suppression Joule Rating: 450 Physical
Cooling Method: Multi-Speed Fan
Material of Construction: Polycarbonate
Receptacle Color: Black
Form Factor Supported: Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information) Environmental
Relative Humidity: 0 to 95% Non-Condensing Line / Battery Transfer
Transfer Time (Line Power to Battery Mode): 16.6 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications)
Low Voltage Transfer to Battery Power: In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95, 105V - see manual)
High Voltage Transfer to Battery Power: In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 135V (user adjustable to 145 - see manual) Special Feature
Remote Control Capability: Yes Package Contents

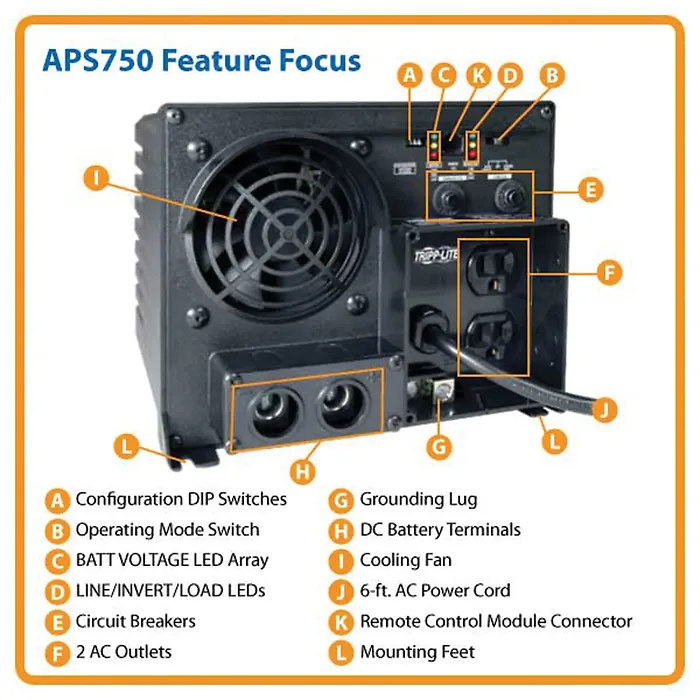

APS750 750W PowerVerter APS 12V DC 120V AC Inverter/Charger
Owners Manual Item Dimension (L"xW"xH")
13 x 11 x 11

Weight
18.60 lb

Warranty Information
1 Year Limited
