General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:AP8863
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric

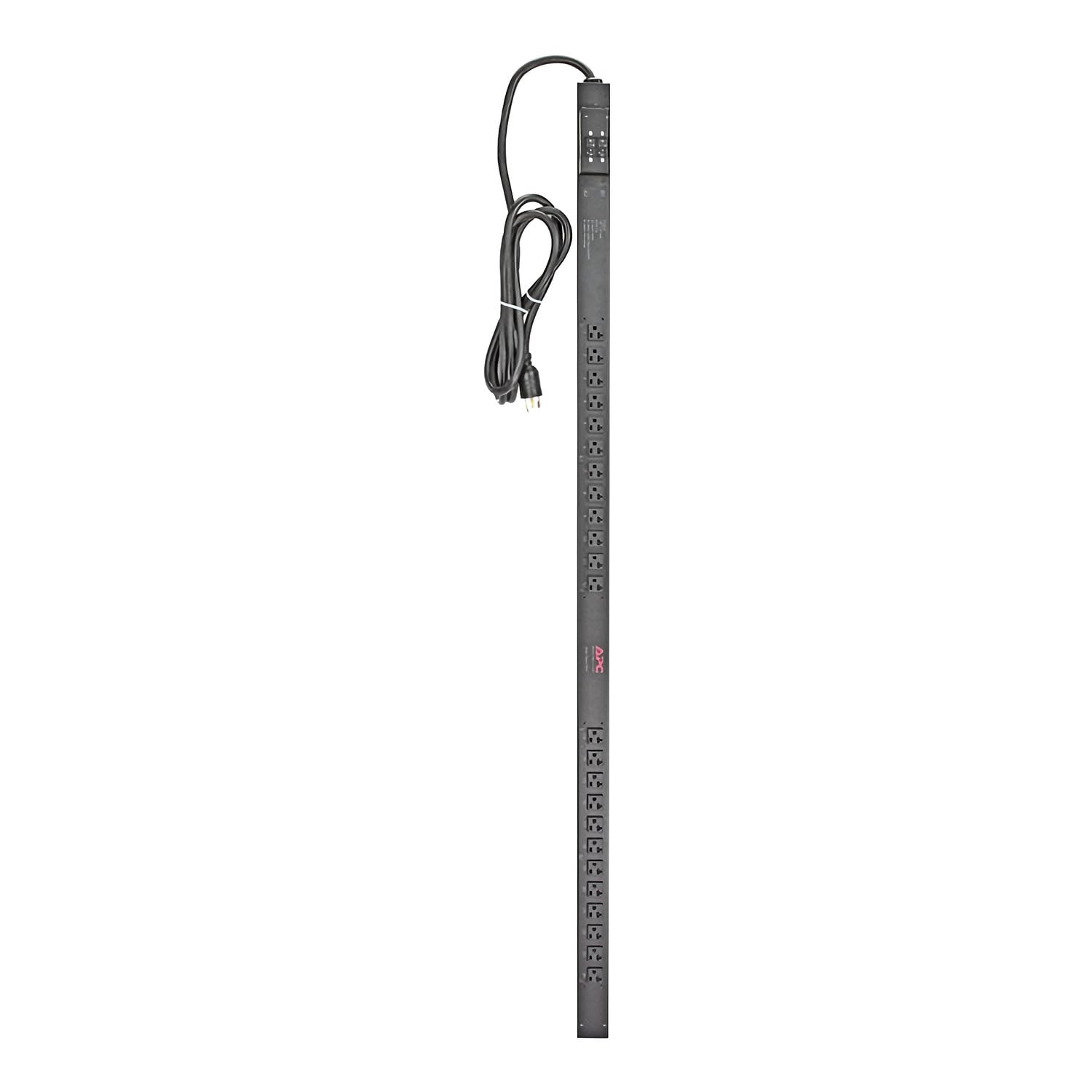

Product Name:Metered Rack PDU
Marketing Information:

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Product Type:PDU

Technical Information

---

PDU Type:Metered
Plug/Connector Type:NEMA L21-20P
Receptacle Type:

• NEMA 5-20R
• NEMA L6-20R

Receptacle Detail:

• 24 x NEMA 5-20R
• 6 x NEMA L6-20R

Protection Type:Circuit Protection

Power Description

---

Input Voltage:

• 120 V AC
• 230 V AC

Input Voltage Range:120 V AC - 230 V AC
Output Voltage:

• 120 V AC
• 208 V AC

Power Rating (VA):5760 VA
Input Current:20 A
Circuit Breaker:Yes

Management

---

Management:

• Web
• SNMP
• Telnet

Physical Characteristics

---

Product Color:Black
Mounting Orientation:Horizontal/Vertical
Mount Type:Rack-mountable
Form Factor:Tower
Rack Height:0U
Number of Cord/Cable:1
Cord Length:6 ft
Height:72"
Width:2.2"
Depth:1.7"
Weight (Approximate):14.48 lb

Miscellaneous

---

Package Contents:

Metered Rack PDU

Installation guide

Rack mounting brackets

Safety guide

Serial configuration cable

Certifications & Standards:

• cUL Listed
• FCC Part 15 Class A
• ICES-003
• UL 60950-1
• UL Listed

Environmentally Friendly:Yes
Environmental Certification:

• REACH
• RoHS

Warranty

---

Limited Warranty:2 Year
