General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:AP8632
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric

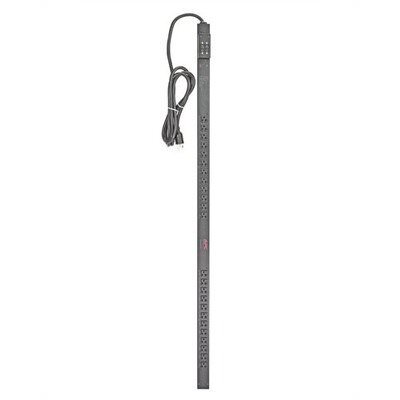

Product Name:Metered-by-Outlet with Switching Rack PDU
Marketing Information:

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by Struxureware for Data Centers using Data Center Expert and Data Center Operations with Capacity and Change modules.

Product Type:PDU

Technical Information

---

PDU Type:Metered-by-Outlet
Plug/Connector Type:NEMA L5-30P
Receptacle Type:NEMA 5-20R
Receptacle Detail:24 x NEMA 5-20R
Protection Type:Overload Protection

Power Description

---

Input Voltage:120 V AC
Output Voltage:

• 100 V AC
• 120 V AC

Power Rating (VA):2880 VA
Input Current:30 A

Management

---

Management:

• Web
• SNMP
• Telnet

Physical Characteristics

---

Product Color:Black
Mounting Orientation:Vertical
Mount Type:Rack-mountable
Form Factor:Tower
Rack Height:0U
Number of Cord/Cable:1
Cord Length:10 ft
Height:72"
Width:2.2"
Depth:2"
Weight (Approximate):17.71 lb

Miscellaneous

---

Package Contents:

Metered-by-Outlet with Switching Rack PDU

Installation guide

Rack mounting brackets

Safety guide

Serial configuration cable

Certifications & Standards:

• cUL Listed
• FCC Part 15 Class A
• ICES-003
• PSE
• UL 60950-1
• UL Listed

Environmentally Friendly:Yes
Environmental Certification:

• RoHS
• REACH

Warranty

---

Limited Warranty:2 Year
