Product Name

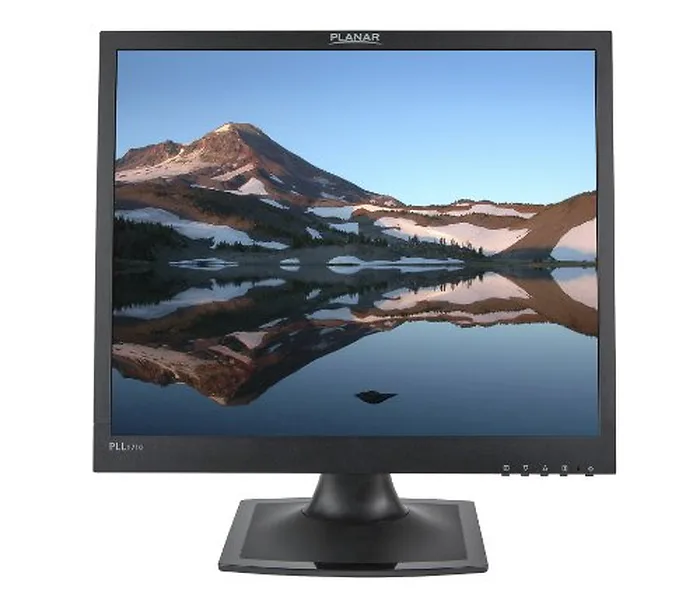

PLL1710

Planar Part Number
997-7244-00

Viewable Size
17" diagonal (13.30" horizontal x 10.64" vertical)

Aspect Ratio
5:4 Contrast Ratio (typ)
1000:1

Viewing Angle (typ)
170 Horizontal and 160 Vertical (Specified at CR>10:1)

Response Time (typ)
5 ms

Brightness (Typical)
250 cd/m Display Type
Edge-Lit LED LCD

Display Resolution
1280 x 1024 SXGA

Tilt Range
0 to +20 Palette
16.7 million colors

Pixel Pitch
0.264 mm

Refresh Rate
55-76 Hz (60 Hz recommended) Dimensions (W x H x D)
14.6" x 14.9" x 7" (370.1 mm x 379.5 mm x 177.8

Panel Depth
2.4" (60.5 mm)

Display Weight
6.6 lbs, 5.1 lbs (without stand).

Shipping weight
8.9 lbs. Video Inputs
Digital (DVI-D w/HDCP), Analog (VGA)

External Connections
1 - DVI 24-pin connector 1 - VGA D-sub 15-pin video connector

Audio Output
N/A Compatibility
PC and Mac (adapter may be required for Mac)

Power Supply
Internal

Power Consumption
22W typical (<0.5W standby) Power Requirements
AC 100/240 VAC

VESA Compatible/Location
Built-in 100 mm VESA, back

Product Approvals
FCC-B, UL/cUL, RoHS Options / Features
Anti-glare coating, Multi-language support, On Screen Display(OSD), Kensington Security slot

In the Box
PLL1710 17" LED LCD Monitor, Power Cord, VGA Cable, Users Guide Item Dimension (L"xW"xH"):
14.6 x 14.9 x 7

Weight:
9.17 lb

Warranty Information:
3 Years
