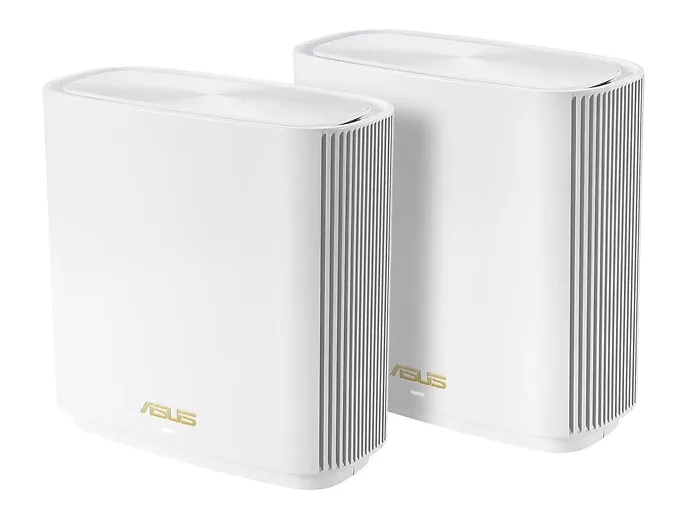

Elevate your home networking experience with the Asus ZenWiFi AX6600 Tri-band Mesh WiFi 6 System. This powerful mesh system provides seamless, high-speed WiFi coverage for every corner of your home. With two units included, you can easily create a robust network that supports multiple devices without compromising performance.

Designed for the modern home, the ZenWiFi system integrates advanced features such as parental controls and advanced security, ensuring a safe and efficient online environment for everyone.

Whole-home Coverage

High speed tri-band. Stable WiFi.

The ZenWiFi AX system consists of a pair of ASUS AX6600 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections inside or outside your home!

WiFi 6

True 8K Streaming

ZenWiFi AX puts your WiFi into top gear! With a total bandwidth of up to of 6600 Mbps, it's up to 2.2X faster than tri-band AC3000 (WiFi 5) routers .

Flexible Network Naming

Uniquely, ZenWiFi AX lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!

Make the Internet a
Safer Place for Everyone

AiProtection Pro with Advanced Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.

Smart Looks for Smart Homes

ZenWiFi AX works perfectly with smart-home services including Alexa skills and IFTTT and is available in black or white to suit your dcor.

Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6
Coverage
Very large homes
Data Rate
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 300 Mbps
802.11ac (5GHZ-1)up to 867 Mbps
802.11ac (5GHZ-2)up to 3466 Mbps
802.11ax (2.4GHz) : up to 574 Mbps
802.11ax (5GHZ-1)up to 1201 Mbps
802.11ax (5GHZ-2)up to 4804 Mbps
Antenna
Internal antenna x 6
Transmit/Receive
2.4 GHz 2 x 2
5 GHz-1 2 x 2
5 GHz-2 4 x 4
Processor
1.5 GHz quad-core processor
Memory
256 MB Flash
512 MB RAM
Wi-Fi Technology
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4G Hz, 5 GHz-1, 5 GHz-2
Encryption
WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
Firewall and Access Control
Firewall: SPI intrusion detection, DoS protection
Access controlParental control, Network service filter, URL filter, Port filter
Management
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log
VPN Support
IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client
WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Ports
RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
USB 3.1 Gen 1 x 1
Features
Range Boost
Router app
MU-MIMO
Smart Connect
Traffic Analyzer
Adaptive QoS
AiProtection Pro
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3
VPN server : PPTP Server, OpenVPN Server, IPSec server
VPN client : PPTP client, L2TP client, OpenVPN client
NAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
Mac OS Backup
Enhanced media server (AiPlayer app compatible)
- Image : Jpeg
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
IPTV support
Roaming Assist
OFDMA
Beamforming
Button
WPS Button, Reset Button, Power Switch
Power Supply
AC Input : 110V-240V(50-60Hz)
DC Output : 19 V with max. 1.75 A current
OS Support
Windows 10
Windows 8
Windows 7
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Package Content
ZenWiFi AX
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card
