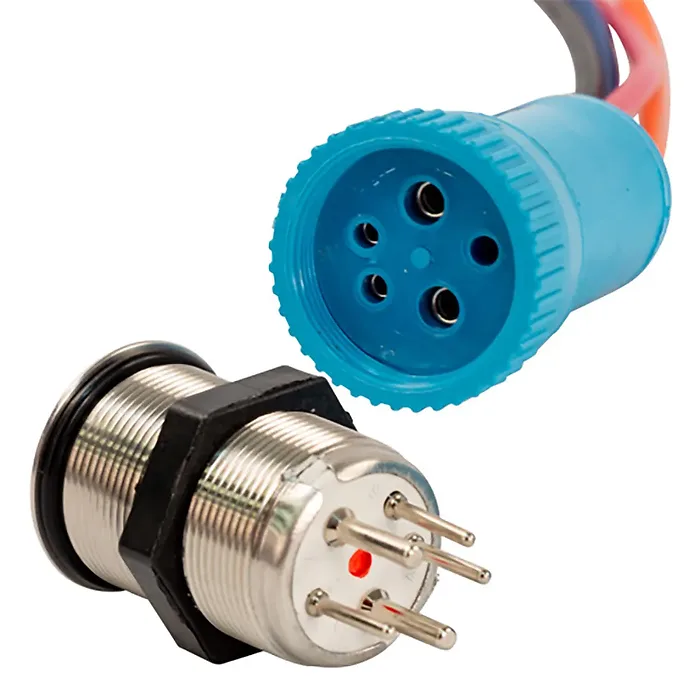

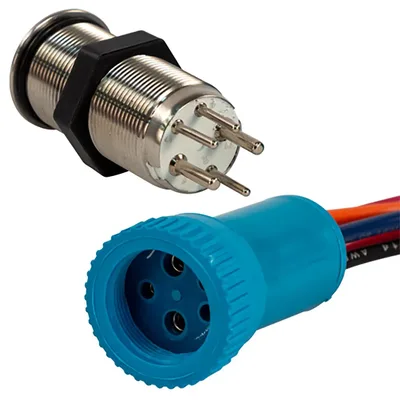

22mm Momentary Push Button Switch - IP69K Waterproof with LED

This durable stainless-steel plated push button switch adds a modern touch to any dashboard. Featuring an "Off/(On)" momentary contact design, it is ideal for various applications requiring reliable operation.

With an impressive waterproof rating of IP69K, this switch is built to withstand challenging conditions. The switch is backlit with blue LED light for visibility in low-light situations, and changes to red to clearly indicate when the function is activated.

Specifications:

• Function: Off-(On) (momentary contact)
• Indicator Light: Blue to Red
• Rear Mark Page: Green dot
• Switch Rating: 15A/12 – 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

To install, drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety) and then connect the 2 contacts for the LED lighting.

• 4 ft. lead for easy installation
• Modern stainless steel design
• IP69K waterproof rating
• Bright LED indication with color change
• Long mechanical and electrical life
