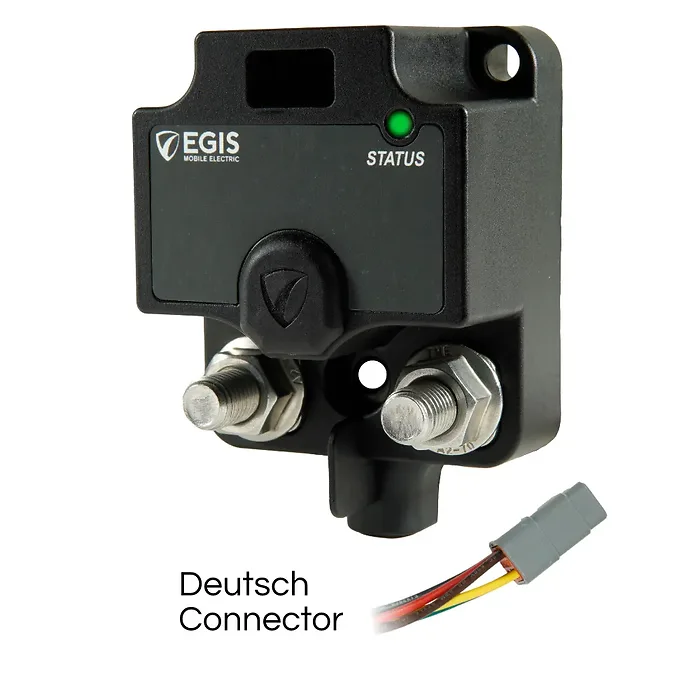

XD Series Compact Dual Relay with DTM Connector

This Egis dual relay is designed for efficiency, offering a compact solution that reduces mounting space and weight by 35-75% through its advanced bi-stable solenoid design and multiple assemblies. Built to be expandible, it allows for linking additional XD relays with busbars. The relay is compatible with both 2 and 3 battery systems using standard busbar accessories.

Applications:

• Serves as an improved replacement or alternative for legacy solenoids and remote battery switches; Wire-for-wire compatible with Blue Sea ML-solenoid and ML-remote battery switch products.
• Forward-facing input studs facilitate easy wire landing, while the protective cover includes integrated label recesses for easy identification and anti-contact short protection.

Specifications:

• Total Continuous Current Amps: 500
• Max Cranking Current (Amps): 1500
• Mechanical Switching Life: 1,000,000 cycles
• Voltage Range (VDC): 8-36
• Off-State Current Draw (mA): 1.3
• State Change Current: 5A @ 12 VDC; 3A @ 24 VDC

Focal Features:

• LED Status Display: The front-facing LED indicator provides clear visual status of the device, along with a remote LED that mirrors the on-device light.
• 40 Circuit Label Sheet Included: Comes with weatherproof labels for easy circuit and relay identification, plus blank labels for custom uses.
• Protective Cover Included: Safeguards terminal studs and cable edges against accidental shorts.
• Integrated Vent: Features high-quality Gortex vents that regulate internal pressure and prevent moisture from entering, ensuring longevity in harsh conditions.
• Durable Hardware: Built with high-quality stainless steel studs and self-locking flanged nuts for corrosion resistance.
• Programmable: Easy to configure using dip switches hidden under the protective cover, complete with a user-friendly guide for custom application settings.
• Compact Design: Offers high amp ratings in a smaller footprint than competitor products, minimizing installation space requirements.
