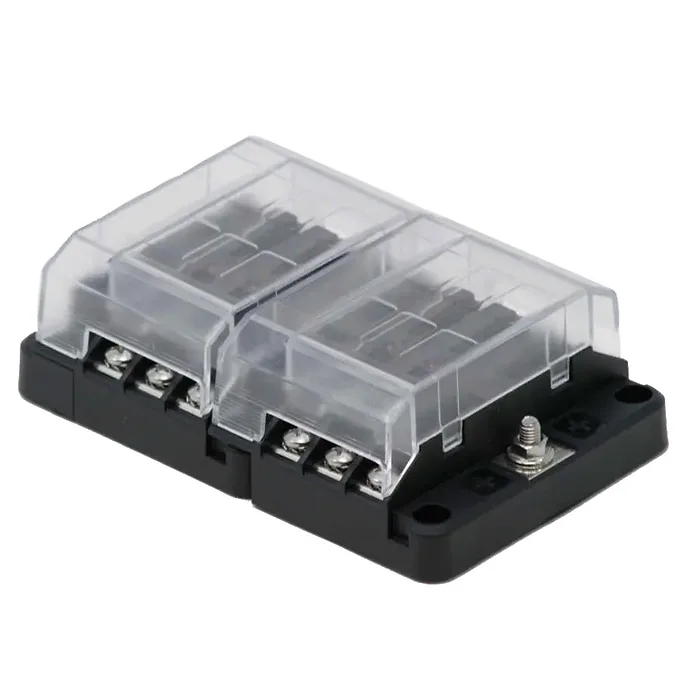

12-Position RT Fuse Block with LED Diagnostics

This versatile 12-position fuse block features a modular design that supports seven unique configurations while reducing the number of parts needed for various builds. Equipped with LED diagnostics, this fuse block allows for quick identification of blown fuses.

Applications:

• Quick resolution of system failures through LED indication of blown fuses, enhancing remote diagnostics.
• Designed for harsh environments with stainless steel self-locking hardware and optional weather-proof labels available in standard or customized options.

Specifications:

• Maximum Current (Entire Block): 100 Amps
• Maximum Current (Per Circuit): 30 Amps
• Max Output Wire Size: #10 AWG
• Voltage Range: 12-24 VDC
• Number of Fuse Positions: 12
• Compatible Fuse Types: ATO / ATC / ATF

Safety Warning: This product may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

• Constructed from high-temperature materials for durability and resistance.
• Accepts ATO-style fuses, providing branch circuit protection ranging from 1 to 40 Amps.
• Meets SAE standards for thermal and short circuit protection.
• Features two spare fuse locations per 6 circuits for spares or test resistors.
• Corrosion-resistant stainless steel self-locking hardware with all non-ferrous materials.
• LED indication for blown fuses on each output circuit for efficient troubleshooting.
• Cover and label recesses protect terminal studs and cable terminal edges from short-circuiting.
