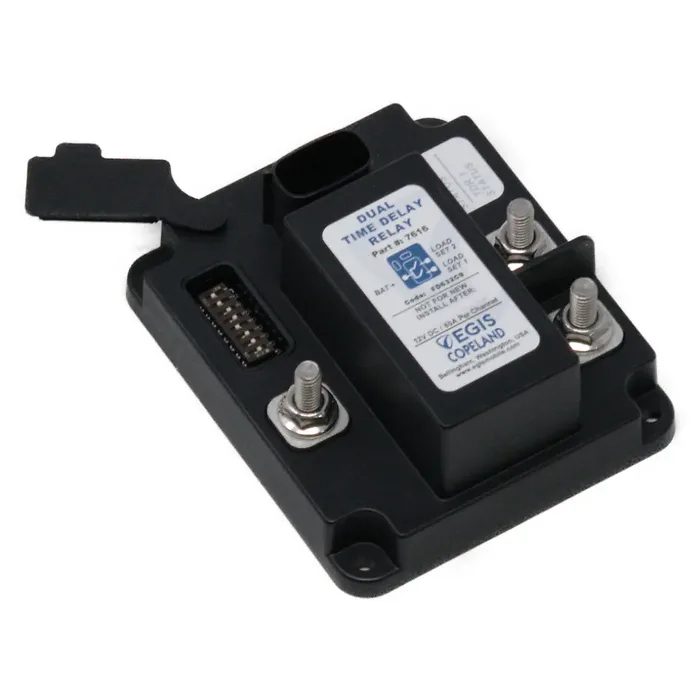

Egis TDR Series 12V Dual Output Time Delay Relay 80A

The Egis TDR Series is a 12V dual-time relay designed to prevent dead batteries caused by the continuous operation of added equipment loads after engine shutdown. With features that maximize operational readiness, this relay is ideal for protecting sensitive onboard electronics and managing multiple systems connected to a battery, ensuring no unnecessary power drain.

Applications:

• Supports on-board video systems to allow lengthy downloading while ensuring non-essential equipment shuts down faster.
• Safeguards sensitive onboard electronics through optional under-voltage and over-voltage shutoff, and start event isolation.

Key Features:

• Minimizes vehicle downtime with the lowest off-state current draw (1.3 mA) available.
• Simple and robust installation with a sealed plug and optional long wire leads; single device replaces multiple control units, reducing installation time and costs.
• Additional low-amp output maintains 24-hour memory circuits or controls shutdown on other equipment.
• Durable construction with high-temperature materials and sealed unit allows mounting anywhere; includes integrated thermal overload protection.
• Complies with stringent OEM standards for electrical transient self-protection.
• Adjustable off time delay settings from 0 seconds to 4 hours.
• Kill Switch control input ensures loads are not inadvertently powered during maintenance or servicing, along with emergency OFF options.
• Flexible control capabilities via ignition key, alternator voltage sense, or both.
• Comes with a 4-year industry-leading warranty.

• Maximum current: 80 Amps DC continuous per output (160 A total); intermittent rating of 120 Amps DC for 5 minutes per output.
• Off-state current draw of 1.5 mA, leading to less than 1 Amp-hr battery drain per month in standby mode.
• Operating voltage: 12 Vdc nominal (8 - 18 Vdc); operating temperature range: -40 to 85 degrees Celsius.
• Time delay options adjustable from 5 seconds to 4 hours via dip switches.
• Environmentally protected to IP66 and IP6K9K; ignition protected to ISO 8846.
• Optional features include input voltage sense trigger for relay OFF, under-voltage, and over-voltage load protection.
