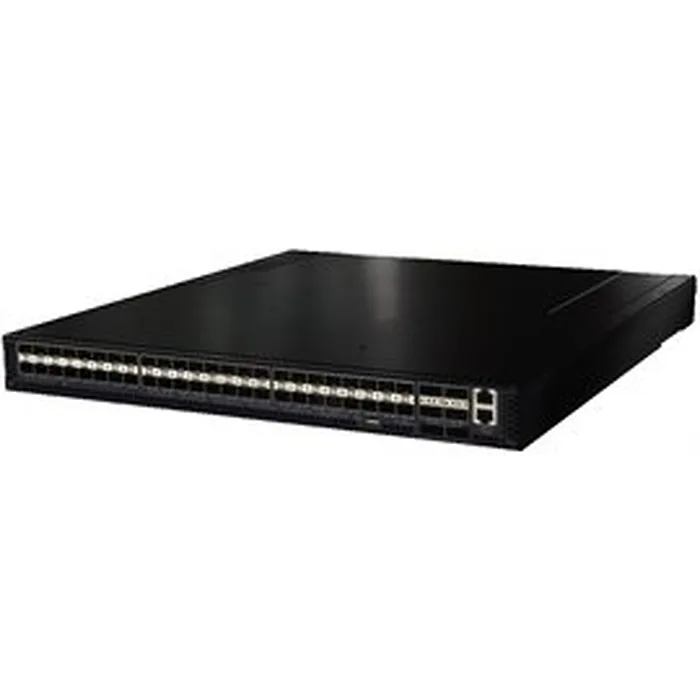

48-PORT SFP+ WITH 6 QSFP+ 40G UPLINK , DUAL AC PSUS ON PORT SIDE, PORT-TO-REAR A
Ports
Switch Ports:
- 48 x SFP+ each supporting 10GbE or 1GbE
- 6 x QSFP each supporting 40GbE or 4 x 10GbE
Management Ports on Front Panel:
- 1 x RJ-45 serial console
- 1 x RJ-45 100/1000BASE-T management
- 1 x USB Type A storage port Key Components
Switch Silicon: Broadcom BCM56864 Trident II+ 720Gbps
CPU Modules:
- Intel Atom C2538 quad-core 2.4GHz x86 processor
- 8 GB SO-DIMM DDR3 RAM with ECC
- 16 MB SPI
- 8 GB NAND flash Performance
Wire Speed Forwarding: L2 and L3
Switching Capacity: 1.44 Tbps
Forwarding Rate: 1 Bpps
Jumbo frames support up to 9216 Bytes
Packet Buffer Size: 16 MB integrated packet buffer
Latency (RFC2544): 720 ns (L2/L3, cut-through mode, full line rate)
Subject to NOS: MAC Address: 32 K min./288 K max.
VLAN IDs: 4 K
Support 4 K ECMP group
IPv4: 16 K min./112 K max. host entries 16 K LPM entries with TCAM-only mode
IPv6: 8 K min./56 K max. host entries IPv6/648K TCAM-only mode Supported Optics and Cables
SFP+ Ports:
- 10GBASE-CR DAC: up to 5 m passive up to 10 m active
- 10GBASE-SRL/SR: up to 100/300 m over OM3 MMF
- 10GBASE-LR: Up to 10km over SMF 10GBASE-
- 1000BASE-SX, 1000BASE-LX, 100/1000BASE-T
QSFP Ports:
- 40GBASE-CR4 DAC 0.5 m to 7 m Passive and Active
- 40GBASE-CR4 DAC to 4 x SFP+
- 40GBASE-SR4: Up to 100 m over OM3 MMF, 150 m over
- OM4 MMF
- 40GBASE-LR4: Up to 10km over SMF LEDs
10G SFP+ Port LEDs: Link Speed, Link Status, Activity
40G QSFP Port LEDs: Link Status, Activity for 40G status
40G QSFP Breakout LEDs: set of 24 LEDs, 4 per QSFP port, show
Link, Status, Activity 10G links with 4 x 10G breakout
Ethernet Management Port LED: Link Status, Activity
Console Port LED: Link Status
System LEDs: PSU1, PSU2, Diagnostic, Fans, Locator Software
Switch is loaded with Open Network Install Environment (ONIE)
software installer
Compatible with the following NOS options:
- Open Network Linux, the open-source, OCP reference NOS
- OcNOS r1.2 and later version form IP Infusion
- Switch Light OS from Big Switch Networks, and Big Cloud Fabric applications Power
PSUs: 2 redundant, load-sharing, hot-swappable AC or -48 VDC
Input Voltage: 90 to 264 VAC at 50-60 Hz. -48 to -72 VDC.
Input Current: Max 6 A at100/120VAC, 3 A at 200/240VAC, 10 A -72 VDC
PSU Efficiency: Up to 93% for AC PSUs
Power input option: 12 VDC
Max Power: 282 W, without pluggable optics Environment
Fans: hot-swappable 4+1 redundant fans
Operating Temperature: 0 C to 40 C (32 F to 104 F)
Storage Temperature: -40 C to 70 C (-40 F to 158 F)
Operating Humidity: 5% to 95% non-condensing Regulatory
EMI
CE Mark (EN55022 Class A)
FCC Part 15 Class A
VCCI
Safety
CB, EN 60950
UL/CUL
Environmental:
- Temperature: IEC 68-2-14
- Drop: ISTA 2A
- Vibration: IEC 68-2-36, IEC 68-2-6
- Shock: IEC 68-2-29
- Acoustic Noise Level: Target at under 60dB in 40 C

RoHS- 6 Compliant
- Country of Origin: Taiwan (TAA Compliant) Item Dimension (L"xW"xH")
18 x 19 x 2

Weight
23.00 lb

Warranty Information
3 Years
